Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement20 · Body
20 · Body & interior

Front console

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Interior trim components › Front console
BodyFront console · page 1 of 2

FRONT CONSOLE

Service repair no - 76.25.01

Remove

  1. Remove rear console. See this section.
  2. Remove radio. See ELECTRICAL, Repairs.
  3. Release gaiter and remove gear knob.

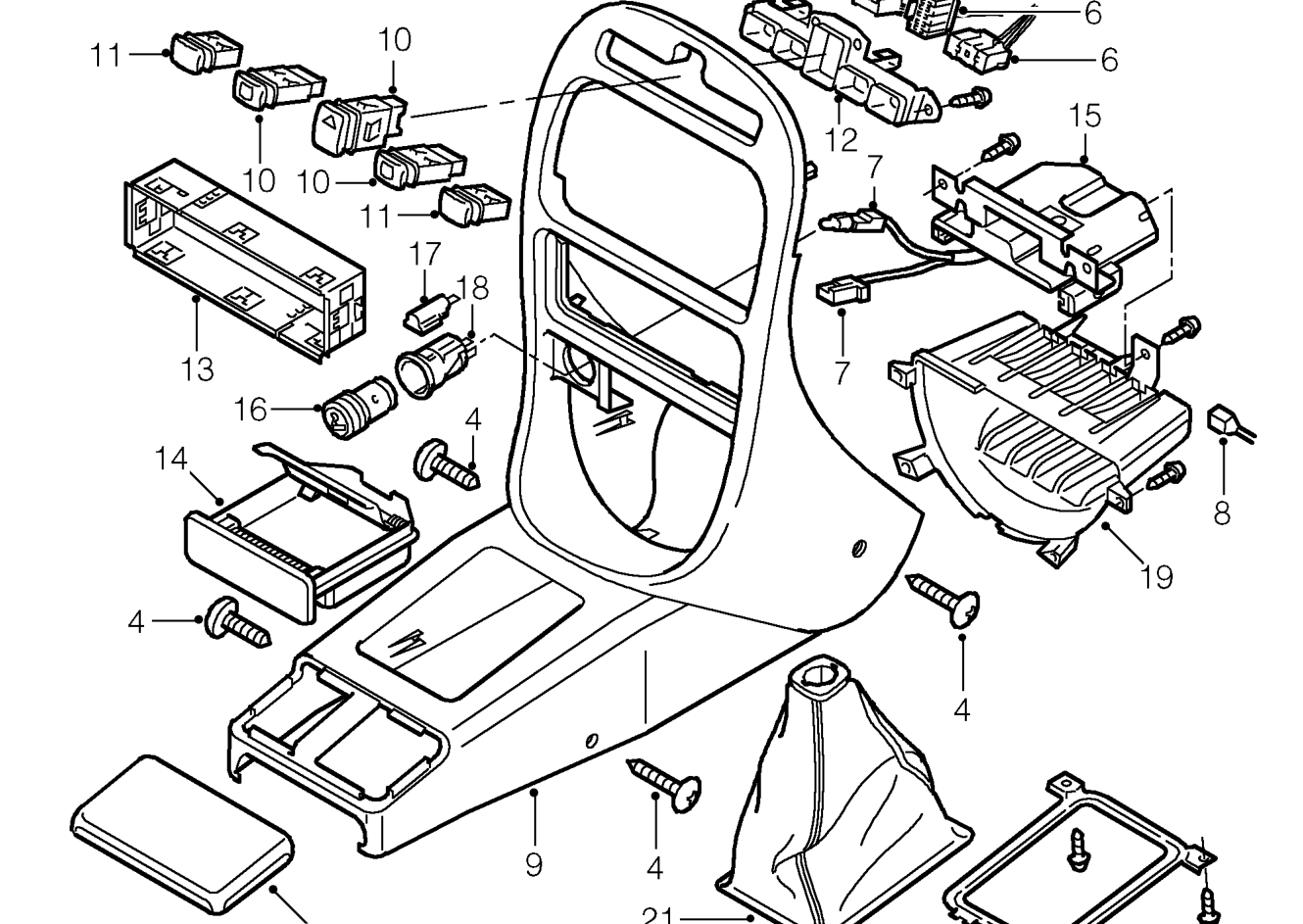

Front console – Release gaiter and remove gear knob.
  1. Remove 4 screws securing front console to fascia.
  2. Release front console from fascia to gain access to multiplugs.
  3. Disconnect fog light, hazard and heated rear screen multiplugs.
  4. Disconnect Lucar and multiplug from cigar lighter.
  5. Cabriolet models: Disconnect multiplug from volumetric sensor.
  6. Remove front console.
