Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement20 · Body
20 · Body & interior

Fascia

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Interior trim components › Fascia
BodyFascia · page 1 of 3

FASCIA

Service repair no - 76.46.23.99

Remove

WARNING: Refer to SRS section for safety precautions.

  1. Remove key from ignition and wait 10 minutes for SRS backup power circuit to discharge.
  2. Disconnect both battery leads, earth lead first.
  3. Remove front console. See this section.
  4. Remove glove box. See this section.

Models fitted with passenger airbag

Models fitted with passenger airbag – Remove glove box. See this section.
  1. Remove 2 Torx screws securing passenger airbag to fascia.

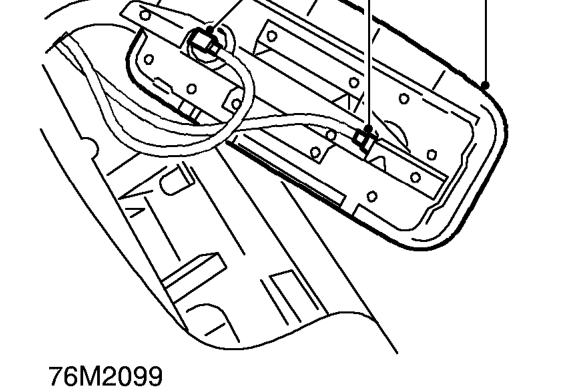

Models fitted with passenger airbag – Remove 2 Torx screws securing passenger airbag to fascia.
  1. Release passenger airbag from fascia and disconnect 2 multiplugs.
  2. Remove passenger airbag.

All models

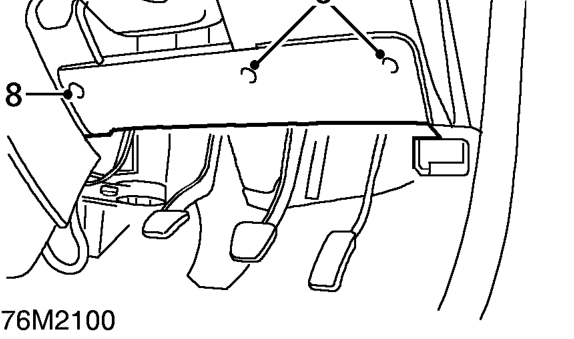

All models – Remove passenger airbag.
  1. Release 3 turnbuckles and remove fuse box cover.
