FASCIA VENEERED PANEL

Service repair no - 76.46.24

CAUTION: Fit protection to fascia before removing veneered panel.

Remove

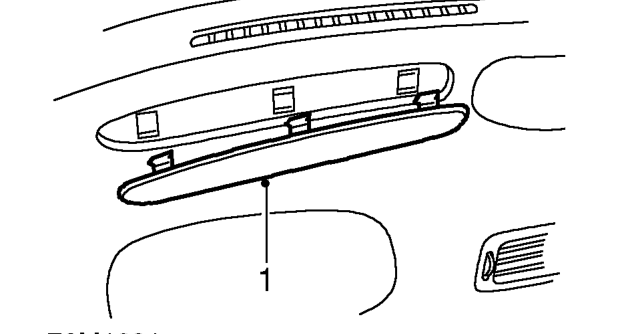

Fascia veneered panel – Service repair no - 76.46.24
  1. Using a flat blade, carefully release veneered panel from fascia and remove.

Refit

  1. Position panel to fascia and secure clips.

GLOVE BOX

Service repair no - 76.52.02

Remove

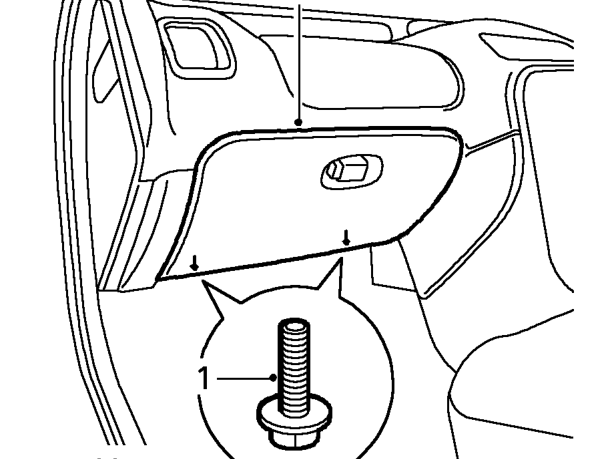

Glove box – Service repair no - 76.52.02
  1. Remove 2 bolts securing glove box to fascia.
  2. Remove glove box.

Refit

  1. Position glove box to fascia, fit bolts and tighten to 10 Nm.
