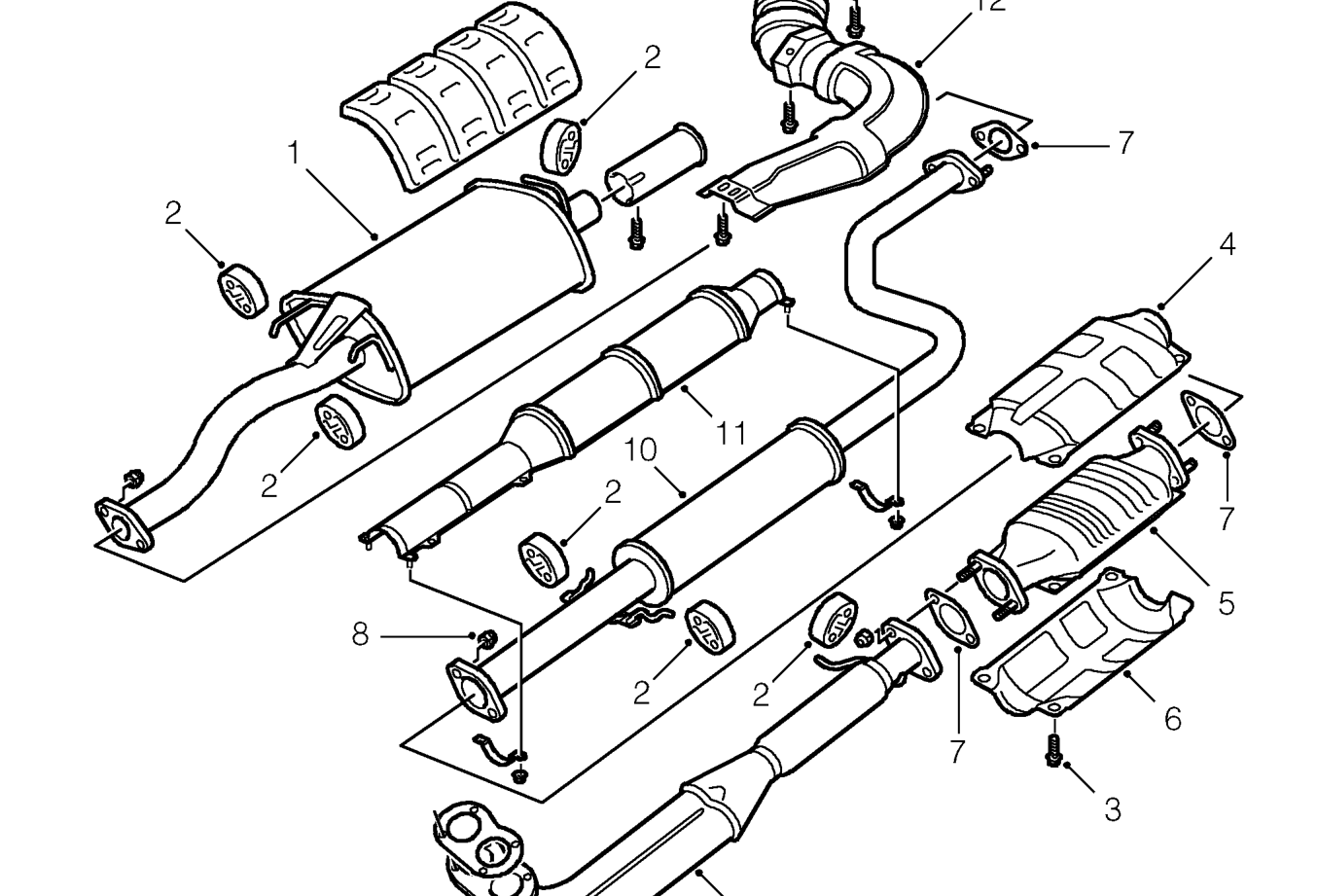

EXHAUST PIPE - ’K16’

1. Exhaust tail pipe
2. Mounting rubber - 6 off
3. Bolt - catalyst heat shield
4. Heat shield - upper - catalyst
5. Catalytic converter
6. Heat shield - lower - catalyst
7. Gasket - pipe flange - 3 off
8. Flange nut
9. Exhaust front pipe
10. Exhaust intermediate pipe
11. Heat shield - intermediate pipe - front
12. Heat shield - intermediate pipe - rear
