Coolant pump - ’K16’

COOLANT PUMP - ’K16’

Service repair no - 26.50.01

Remove

1. Drain cooling system. See Adjustments.
2. Remove camshaft timing belt. See ENGINE - ’K16’, Repairs.

3. Remove bolt securing rear cover to coolant pump.
4. Remove 3 bolts and 2 pillar bolts securing coolant pump to cylinder block.
5. Remove coolant pump from dowels and rear cover.
6. Remove and discard ’O’ ring from coolant pump.

Refit

1. Clean pump and mating face, dowel and dowel hole.
2. Fit new ’O’ ring to coolant pump.
3. Fit coolant pump to cylinder block, fit and tighten bolts to 10 Nm.
4. Fit and tighten pillar bolts to 10 Nm.
5. Fit and tighten bolt, rear cover to coolant pump, to 10 Nm.
6. Fit camshaft timing belt. See ENGINE - ’K16’, Repairs.
7. Refill cooling system. See Adjustments.

COOLANT PUMP - ’K16 WITH VVC’

Service repair no - 26.50.01

Remove

1. Drain cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.
2. Remove camshaft timing belt. See ENGINE - ’K16 WITH VVC’, Repairs.

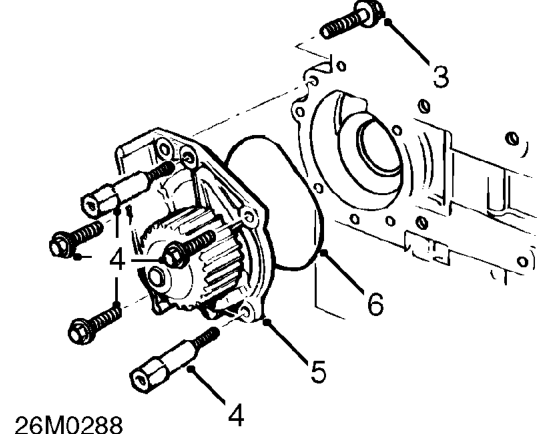

3. Remove bolt securing rear cover to coolant pump.
4. Remove 3 bolts and 2 pillar bolts securing coolant pump to cylinder block.
5. Remove coolant pump from dowels and rear cover.
6. Remove and discard ’O’ ring from coolant pump.

Refit

1. Clean pump and mating face, dowel and dowel hole.
2. Fit new ’O’ ring to coolant pump.
3. Fit coolant pump to cylinder block, fit and tighten bolts to 10 Nm.
4. Fit and tighten pillar bolts to 10 Nm.
5. Fit and tighten bolt, rear cover to coolant pump, to 10 Nm.
6. Fit camshaft timing belt. See ENGINE - ’K16 WITH VVC’, Repairs.
7. Refill cooling system. See Adjustments.
