Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement10 · Cooling system
10 · Engine

Radiator cooling fan - models with air conditioning

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Radiator cooling fan - models with air conditioning
Cooling systemRadiator cooling fan - models with air conditioning · page 1 of 2

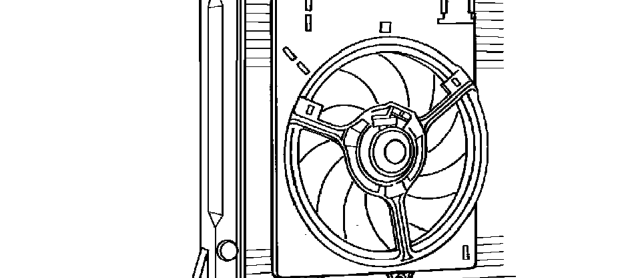

Diagram
  1. Remove 2 nuts securing bottom of cooling fan housing to radiator.
  2. Remove 2 nuts securing top of cooling fan housing to radiator.
  3. Release cooling fan housing from studs on radiator.
  4. Manoeuvre cooling fan housing around radiator top hose and remove from vehicle.

Refit

  1. Manoeuvre cooling fan housing around radiator top hose and into position on radiator studs.
  2. Fit nuts securing cooling fan housing to radiator and tighten to 9 Nm.
  3. Secure radiator top hose to clip on cooling fan housing.
  4. Connect multiplug to radiator cooling fan.
  5. Connect battery earth lead.

RADIATOR COOLING FAN - MODELS WITH AIR CONDITIONING

Service repair no - 26.25.22.20

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front beam. See FRONT SUSPENSION, Repairs.

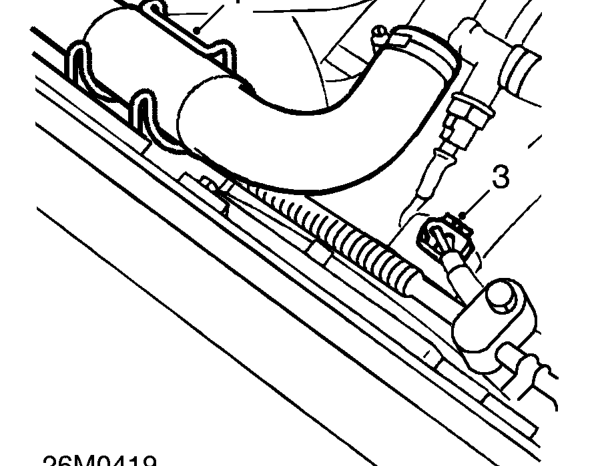

Radiator cooling fan - models with air conditioning – Remove front beam. See FRONT SUSPENSION, Repairs.
  1. Disconnect multiplug from fan motor.
  2. Release radiator top hose from clip on cooling fan housing.
