Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement10 · Cooling system
10 · Engine

Radiator cooling fan - models with air conditioning (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Cooling systemRadiator cooling fan - models with air conditioning · page 2 of 2
Diagram

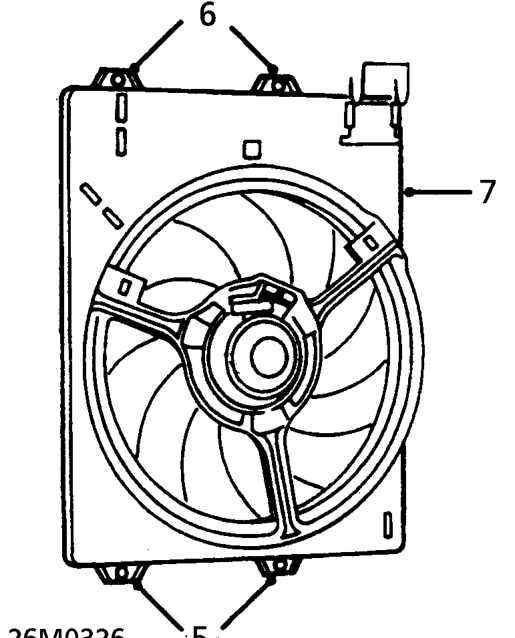

  1. Remove 2 nuts securing bottom of fan housing to radiator.
  2. Remove 2 nuts securing top of cooling fan housing to radiator.
  3. Release cooling fan housing from studs on radiator.
  4. Lower cooling fan housing from vehicle and remove.

Do not carry out further dismantling if component is removed for access only.

Do not carry out further dismantling if component is removed for access only.

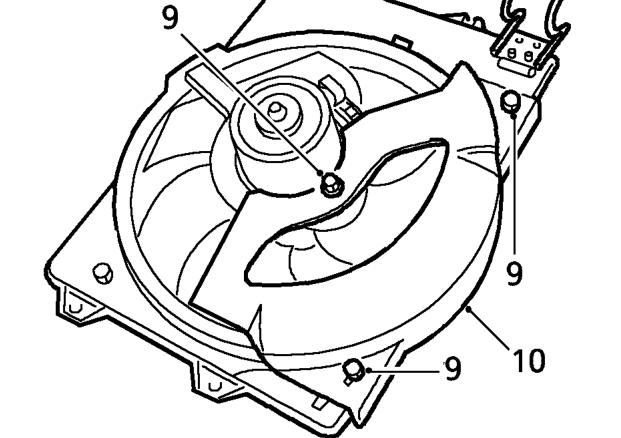

  1. Remove 3 bolts securing heat shield to cooling fan housing.
  2. Remove heat shield from cooling fan housing and fit to new.
  3. Fit and tighten bolts securing heat shield to 5 Nm.

Refit

  1. Position cooling fan housing to radiator studs.
  2. Fit nuts securing cooling fan housing to radiator and tighten to 9 Nm.
  3. Secure radiator top hose to clip on cooling fan housing.
  4. Connect multiplug to radiator cooling fan.
  5. Fit front beam. See FRONT SUSPENSION, Repairs.
  6. Remove stand(s) and lower vehicle.
