RADIATOR - MODELS WITHOUT AIR CONDITIONING

Service repair no - 26.40.01

Remove

  1. Drain cooling system. See Adjustments.
  2. Remove radiator cooling fan. See this section.
Radiator - models without air conditioning – Remove radiator cooling fan. See this section.

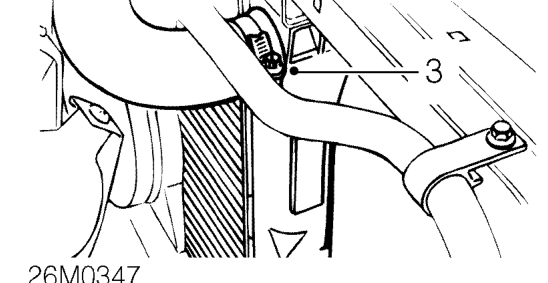

  1. Loosen clip and release top hose from radiator.
Radiator - models without air conditioning – Loosen clip and release top hose from radiator.

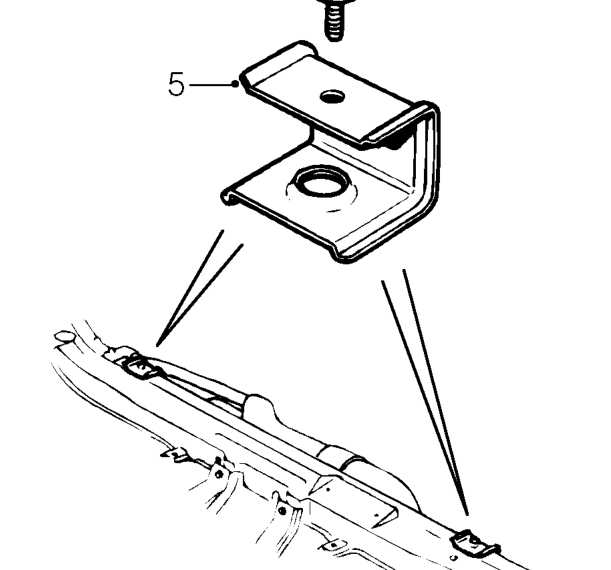

  1. Remove 2 bolts securing radiator top mounting brackets to bonnet locking platform.
  2. Remove 2 radiator top mounting brackets.
Radiator - models without air conditioning – Remove 2 radiator top mounting brackets.

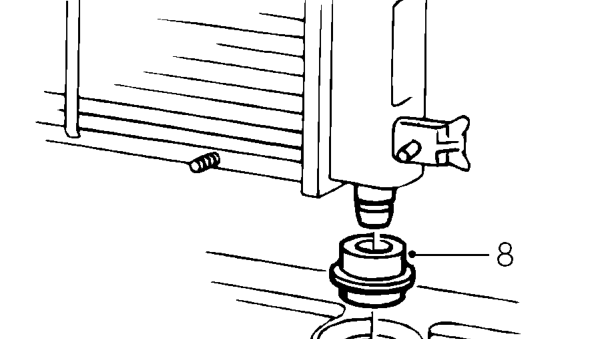

  1. Release radiator from 2 lower mountings.
  2. Remove radiator from vehicle.

Do not carry out further dismantling if component is removed for access only.

  1. Remove 2 lower mounting rubbers from radiator.
  2. Fit lower mounting rubbers to new radiator.

Refit

  1. Manoeuvre radiator into position and locate on lower mountings.
  2. Fit top mountings to radiator and align to body.
  3. Fit bolts securing radiator top mountings to bonnet locking platform and tighten to 9 Nm.
  4. Engage top hose to radiator and tighten clip.
  5. Refit radiator cooling fan. See this section.
  6. Refill cooling system. See Adjustments.
