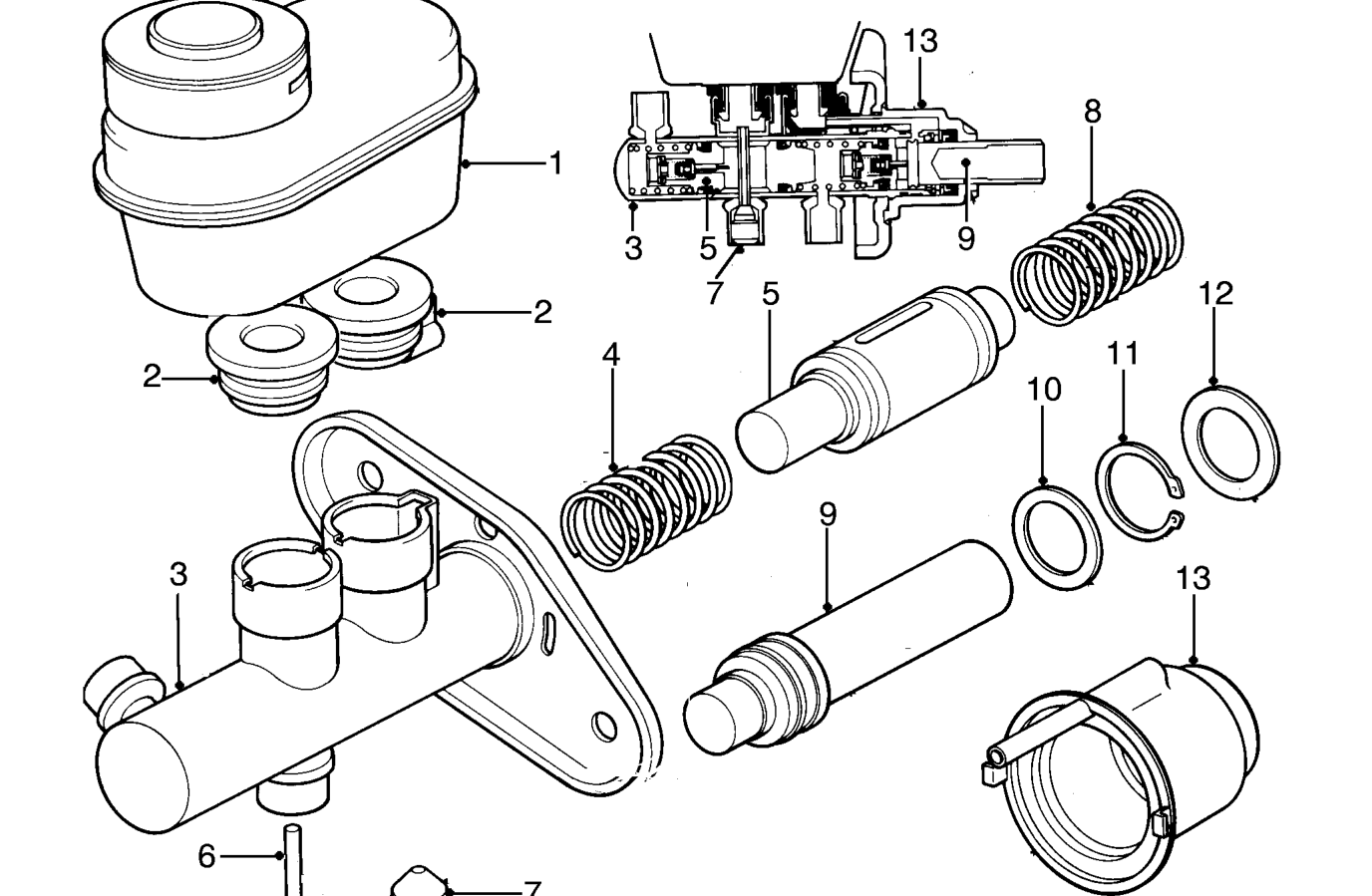

MASTER CYLINDER COMPONENTS - ABS

1. Brake fluid reservoir
2. Seals
3. Cylinder body
4. Spring
5. Secondary piston assembly
6. Stop pin - secondary piston
7. Pin securing screw
8. Spring
9. Primary piston assembly
10. Washer
11. Circlip
12. Flat washer
13. Transfer housing
