Abs5 anti-lock braking system (Brakes)

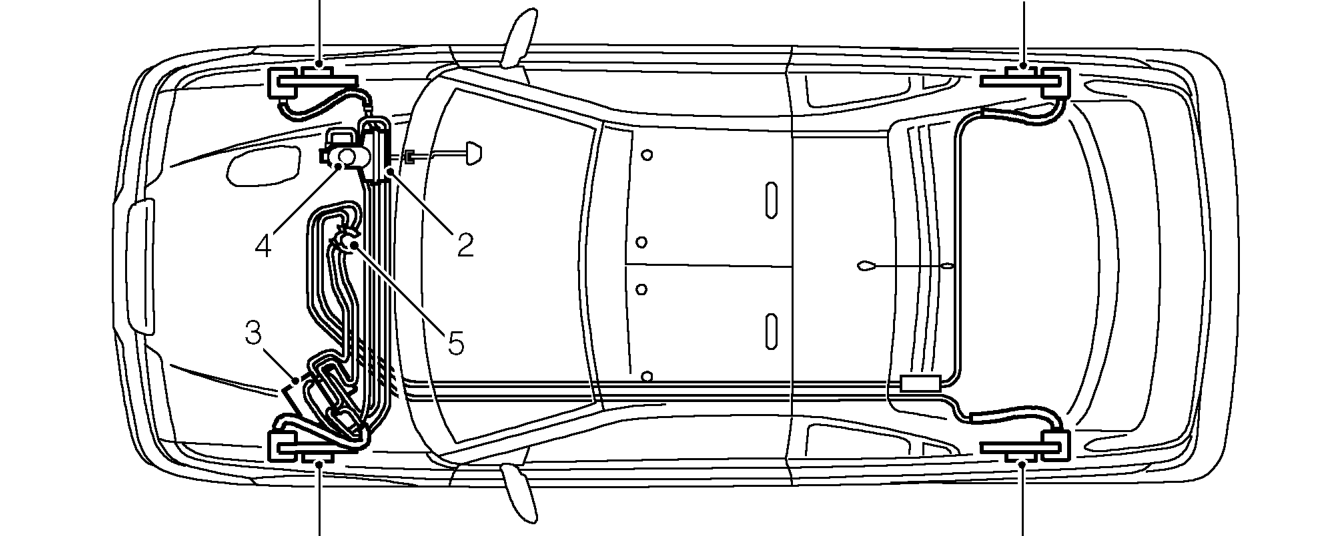

ABS5 ANTI-LOCK BRAKING SYSTEM

1. Reluctor ring and wheel sensor
2. Servo unit
3. ABS5 modulator unit

Description

The ABS5 system is an ECU controlled system deriving its input from four speed sensors mounted at the wheels which allow it to control the hydraulic modulator preventing the wheels locking during braking.

The operation of the ABS system is completely dependent upon electronic signals. To prevent the system responding to any inaccurate signals, a built in safety circuit monitors all electric and electronic signals, including battery voltage. If an inaccurate signal or low battery voltage is detected, the ABS system is shut down immediately and the warning light on the fascia is illuminated to inform the driver that the brake system will respond to pedal pressure in the same manner as a non ABS system.

4. Master cylinder
5. Brake pressure proportioning valve
