Rear drum brake components (Brakes)

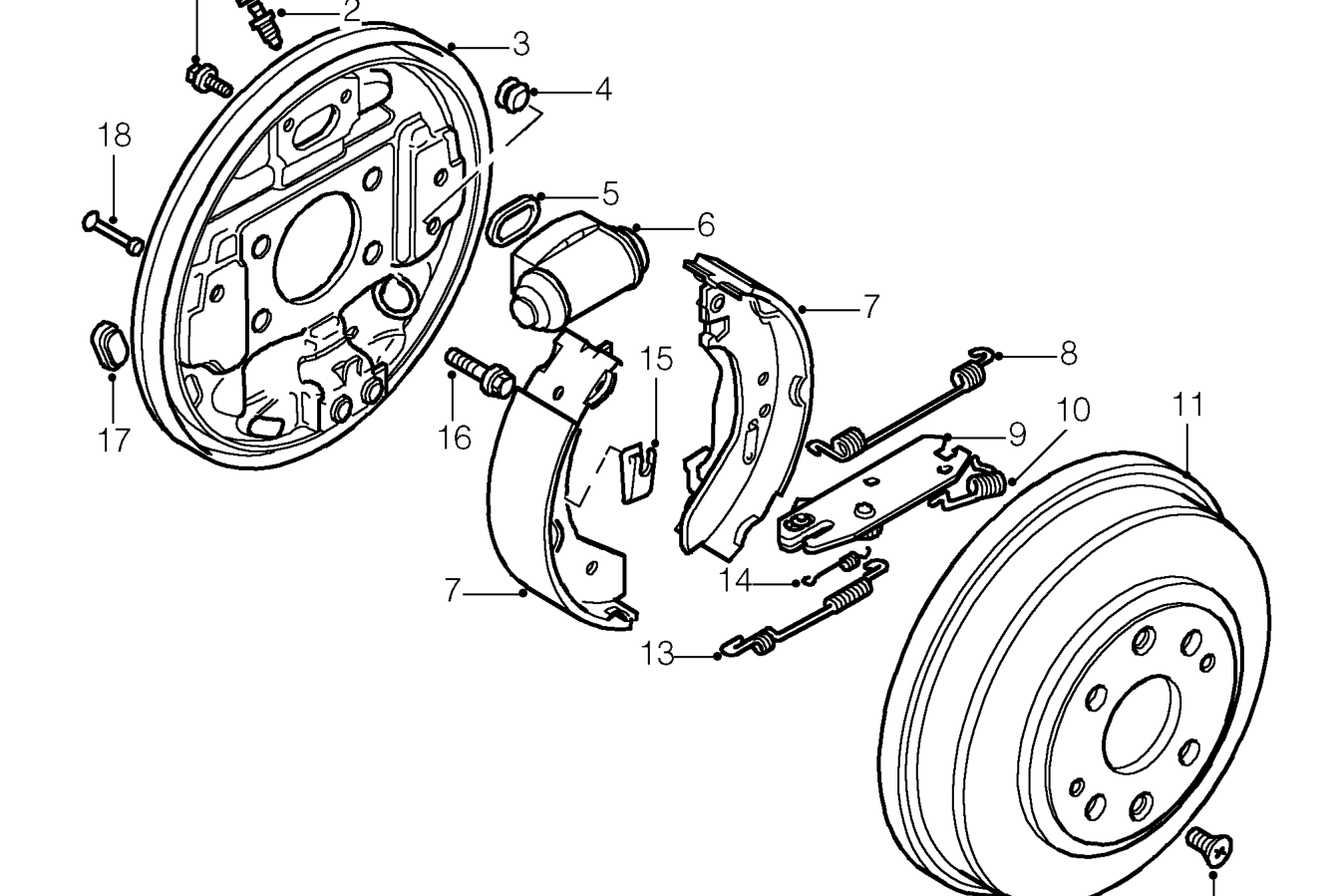

REAR DRUM BRAKE COMPONENTS

1. Dust cover - bleed screw
2. Bleed screw
3. Backplate
4. Plug - access to brake shoe release spring
5. Seal - wheel cylinder to backplate
6. Wheel cylinder
7. Brake shoes
8. Spring - upper shoe return
9. Strut - quadrant assembly
10. Spring - strut return
11. Brake drum
12. Screw - drum to hub
13. Spring - lower shoe return
14. Spring - quandrant
15. Spring clip - retaining pin
16. Bolt - backplate to hub
17. Inspection plug
18. Retaining pin
19. Bolt - wheel cylinder to backplate
