BrakesFront brake caliper components

FRONT BRAKE CALIPER COMPONENTS

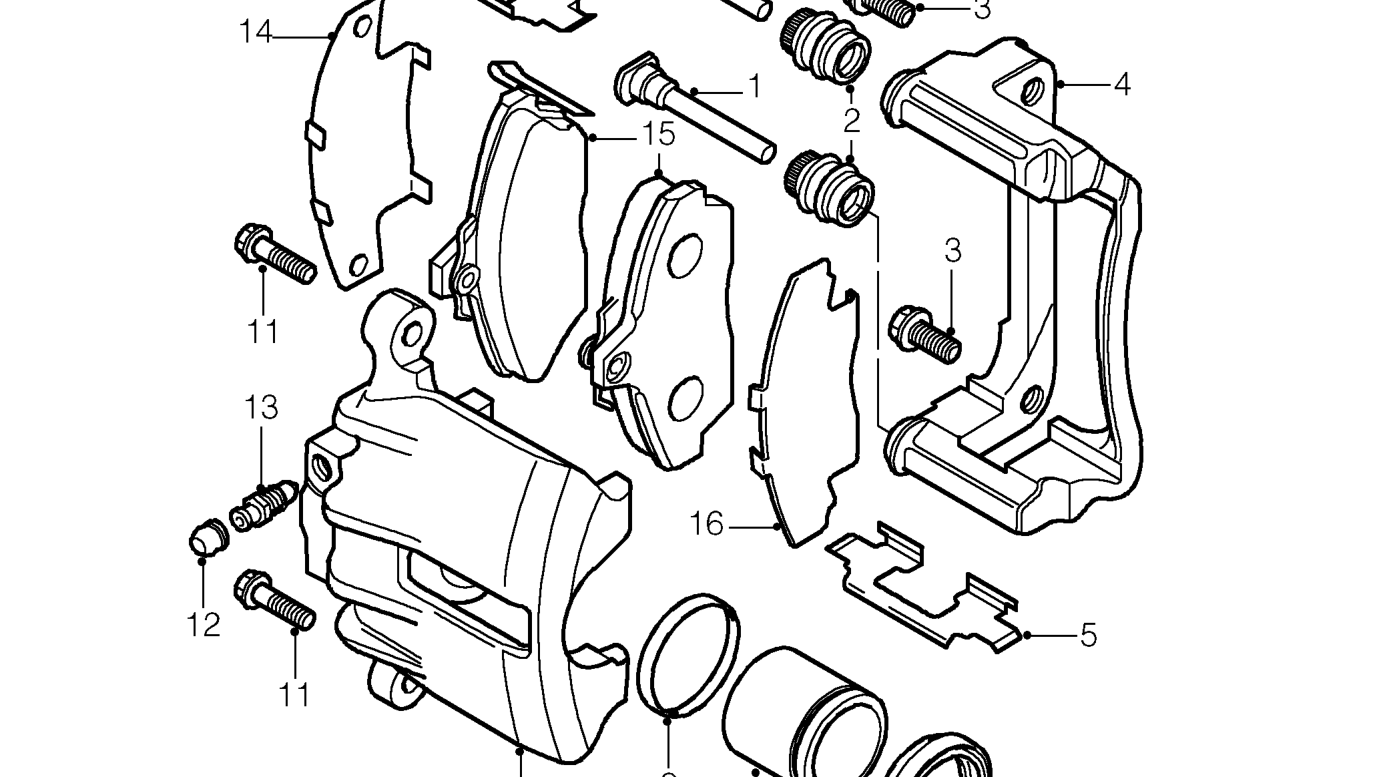

Front brake caliper components
  1. Guide pin
  2. Boot
  3. Bolt - caliper mounting
  4. Caliper carrier
  5. Pad retainer
  6. Shim
  7. Dust cover
  8. Piston
  9. Piston seal
  10. Caliper body
  11. Guide pin bolt
  12. Dust cover - bleed screw
  13. Bleed screw
  14. Inner pad shim
  15. Brake pads
  16. Outer pad shim
