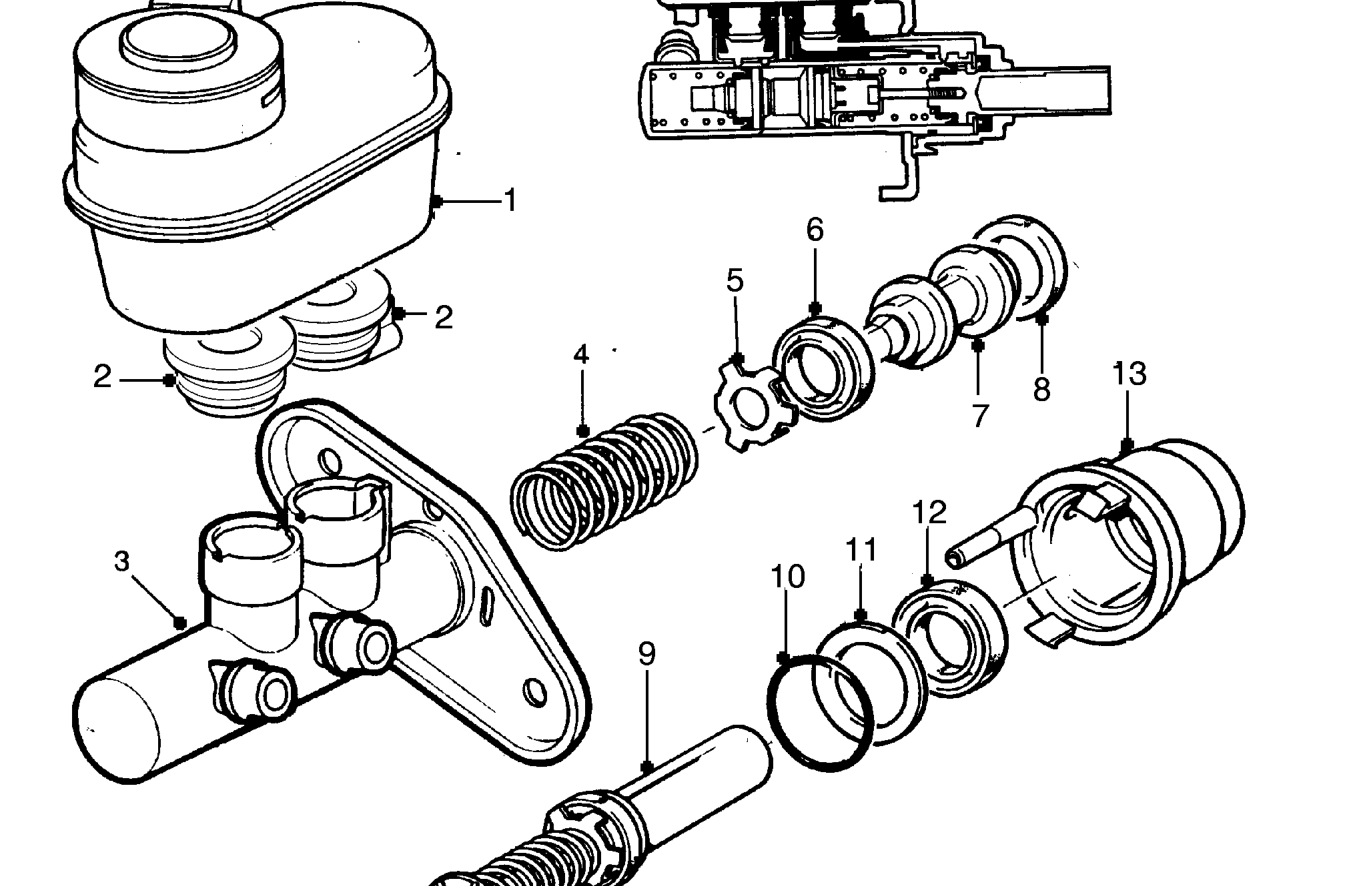

MASTER CYLINDER COMPONENTS - NON ABS

1. Brake fluid reservoir
2. Seals
3. Cylinder body
4. Spring
5. Seal support
6. Seal
7. Secondary piston
8. Seal
9. Primary piston assembly
10. ’O’ ring
11. Vacuum seal backing ring
12. Vacuum seal
13. Transfer housing
