EXHAUST CAMSHAFT FRONT OIL SEAL

Service repair no - 12.13.07

  1. Disconnect battery earth lead.
  2. Remove timing belt upper cover. See this section.

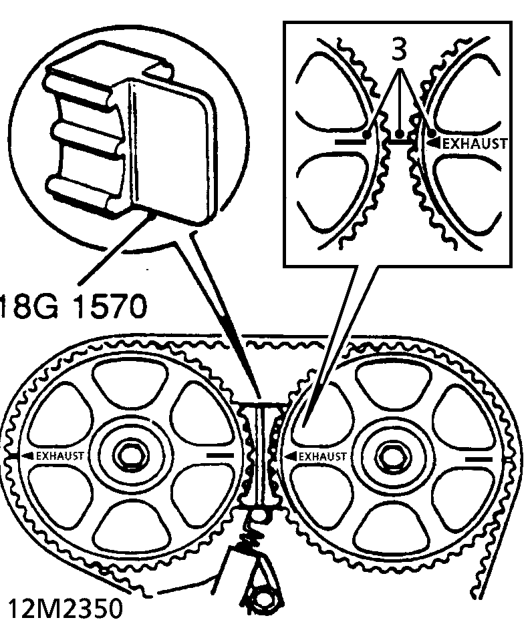

Exhaust camshaft front oil seal – Remove timing belt upper cover. See this section.
  1. Using a socket and extension bar on the crankshaft pulley bolt, rotate crankshaft to align camshaft gear timing marks with mark on rear backplate - 90° BTDC.

CAUTION: Never use the camshaft gear, gear retaining bolts or timing belt to rotate the camshaft.

  1. Fit tool 18G 1570 to camshaft gears.

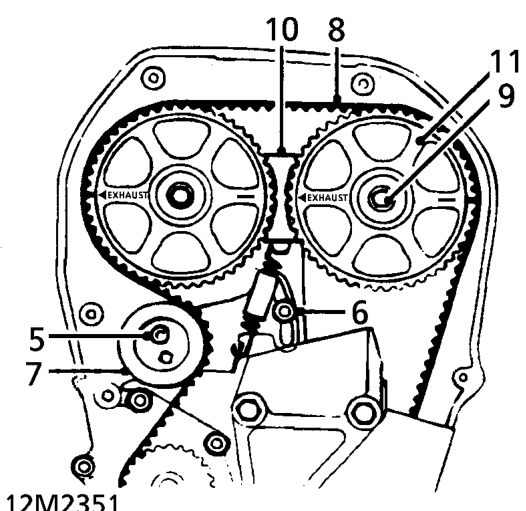

Exhaust camshaft front oil seal – Fit tool 18G 1570 to camshaft gears.
  1. Loosen tensioner pulley Allen bolt11/2 turn.
  2. Loosen tensioner backplate bolt /2 turn.
  3. Push tensioner pulley down to fully OFF position and tighten tensioner backplate bolt to 10 Nm.
  4. Ease timing belt off camshaft gears using fingers only.

CAUTION: Using metal levers to remove the belt may damage the belt and gears. Do not rotate the engine with timing belt removed from camshaft gears.

  1. Remove bolt and washer securing camshaft gear to camshaft.
  2. Remove camshaft gear locking tool 18G 1570.
  3. Remove camshaft gear.
