Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Exhaust camshaft rear oil seal

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Exhaust camshaft rear oil seal
Engine - K16Exhaust camshaft rear oil seal

EXHAUST CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.08

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Exhaust camshaft rear oil seal – Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

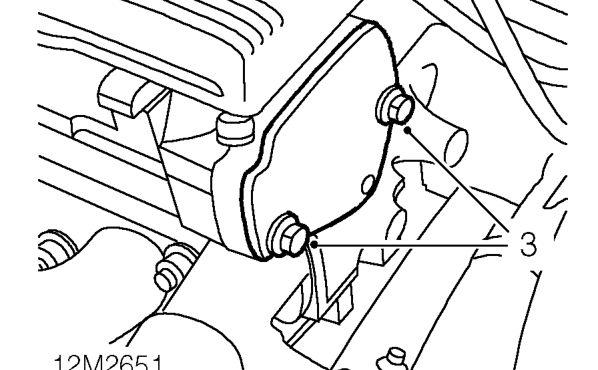

  1. Remove 2 bolts securing rear cover plate and remove plate.
Exhaust camshaft rear oil seal – Remove 2 bolts securing rear cover plate and remove plate.

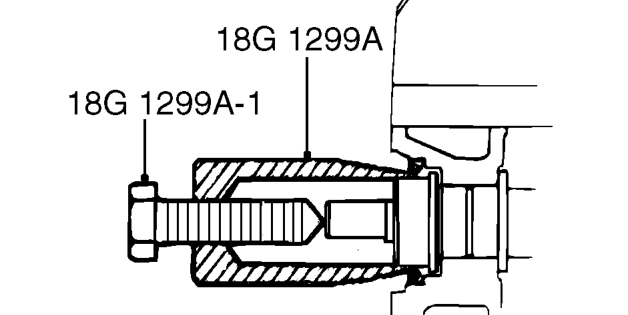

  1. Screw tool 18G 1299A into camshaft rear oil seal.
  2. Tighten centre bolt of tool 18G 1299A-1, to remove seal.
  3. Discard camshaft oil seal.

Refit

  1. Clean sealing area of cylinder head and camshaft carrier, ensuring all traces of rubber are removed. DO NOT use a scraper as this may damage sealing surfaces.
  2. Lubricate sealing surfaces of new seal with clean engine oil.
Exhaust camshaft rear oil seal – Lubricate sealing surfaces of new seal with clean engine oil.

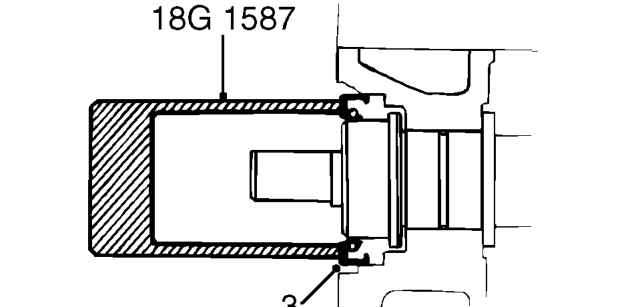

  1. Using tool 18G 1587 fit camshaft oil seal.
  2. Clean camshaft rear cover plate.
  3. Position cover plate, fit bolts and tighten to 25 Nm.
  4. Fit air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  5. Connect battery earth lead.
