Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement08 · Engine management system - MEMS
08 · Engine

Throttle cable

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Throttle cable
Engine management system - MEMSThrottle cable

THROTTLE CABLE

Service repair no - 19.20.06

Remove

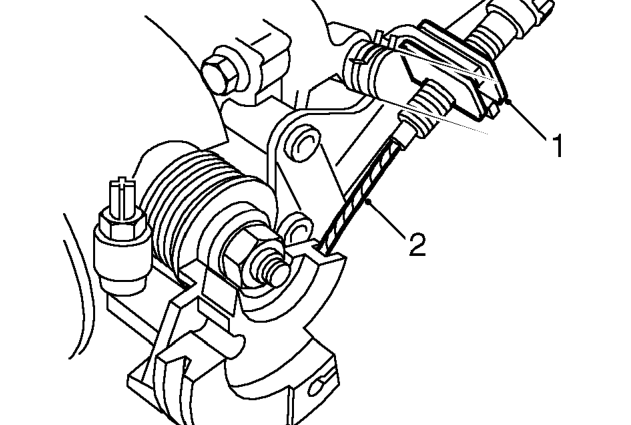

Throttle cable – Service repair no - 19.20.06
  1. Release cable adjusting nut from abutment bracket.

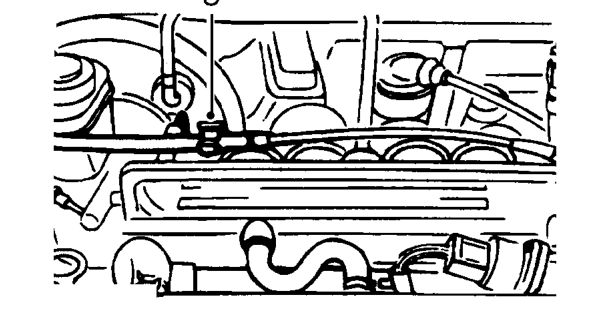

  2. Disconnect inner cable from cam.
Throttle cable – Disconnect inner cable from cam.

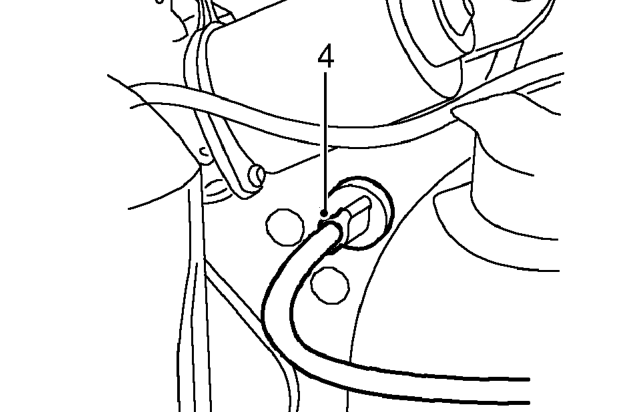

  1. Release cable from clip on inlet manifold.
Throttle cable – Release cable from clip on inlet manifold.

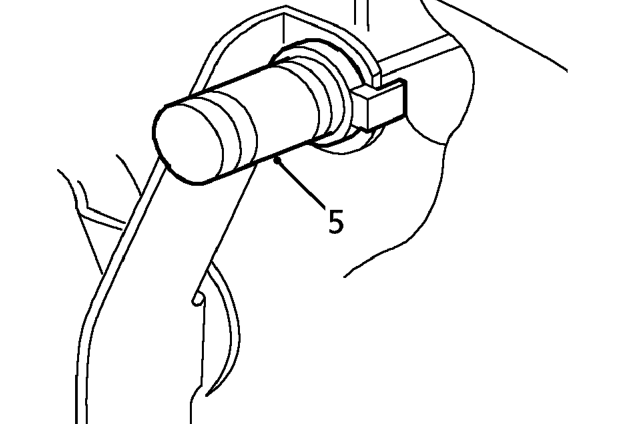

  1. Rotate collar through 90° and release cable from bulkhead.
Throttle cable – Rotate collar through 90° and release cable from bulkhead.
  1. Depress nylon clips and disconnect throttle cable from pedal.
  2. Remove throttle cable.

Refit

  1. Feed cable through bulkhead and connect inner cable to pedal.
  2. Smear rubber grease of both sides of the rubber seal and secure cable to bulkhead.
  3. Fit throttle cable to clip on inlet manifold.
  4. Connect throttle cable to throttle cam.
  5. Connect cable adjusting nut to abutment bracket.
  6. Adjust throttle cable. See Adjustments.
