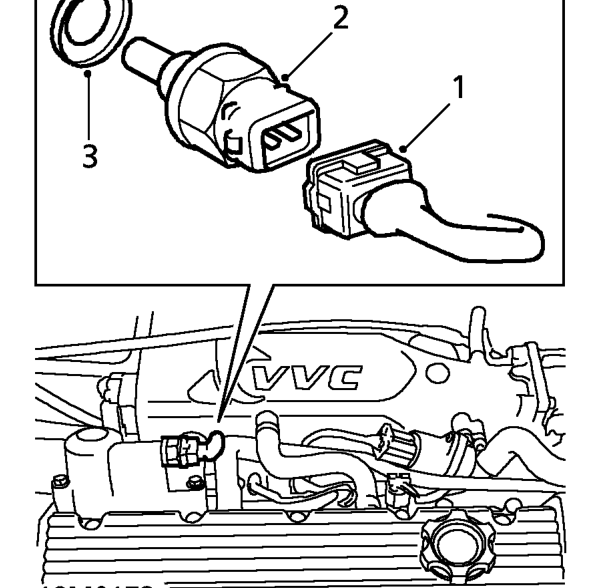

Oil temperature sensor - ’K16 with VVC’

OIL TEMPERATURE SENSOR - ’K16 WITH VVC’

Service repair no - 18.30.41

Remove

1. Disconnect multiplug from oil temperature sensor.
2. Remove temperature sensor from HCU.
3. Remove and discard seal.

Refit

1. Clean sealing faces of sensor and HCU.
2. Fit new seal to sensor.
3. Fit sensor and tighten to 15 Nm.
4. Connect multiplug to sensor.

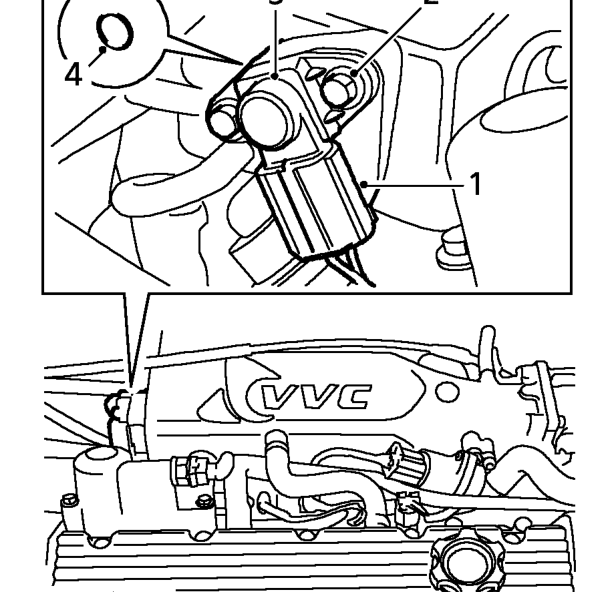

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR - ’K16 WITH VVC’

Service repair no - 18.30.56

Remove

1. Disconnect multiplug from MAP sensor.
2. Remove 2 bolts securing MAP sensor to manifold chamber.
3. Remove MAP sensor.
4. Remove and discard ’O’ ring from MAP sensor.

Refit

1. Clean sealing faces of sensor and manifold chamber.
2. Lubricate and fit new ’O’ ring to MAP sensor.
3. Fit sensor to manifold chamber and tighten bolts to 10 Nm.
4. Connect multiplug to sensor.
