IGNITION COIL

Service repair no - 18.20.43

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

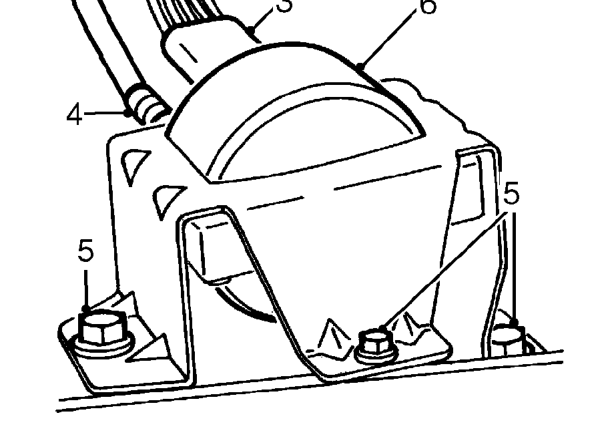

Ignition coil – Raise front of vehicle.
  1. Disconnect multiplug from ignition coil.
  2. Disconnect h.t. lead from ignition coil.
  3. Remove 3 bolts securing ignition coil to engine.
  4. Remove ignition coil.

Refit

  1. Position ignition coil to engine.
  2. Fit bolts securing ignition coil to engine, tighten 2 x M10 bolts to 45 Nm and M6 bolt to 9 Nm.
  3. Connect h.t. lead to ignition coil.
  4. Connect multiplug to ignition coil.
  5. Connect battery earth lead.
  6. Remove stand(s) and lower vehicle.

IGNITION COIL - ’K16 WITH VVC’

Service repair no - 18.20.43

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Disconnect battery earth lead.

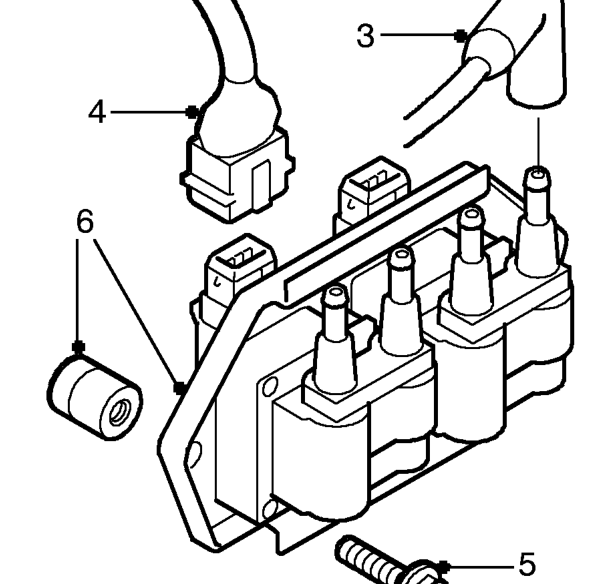

Ignition coil - ’k16 with vvc’ – Disconnect battery earth lead.
  1. Disconnect 4 h.t. leads from ignition coils.
  2. Disconnect 2 multiplugs from ignition coils.
  3. From beneath vehicle; remove 2 bolts securing ignition coil mounting bracket to cylinder block.
  4. Remove ignition coils and collect spacer.
