ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Service repair no - 18.30.10

Remove

  1. Disconnect battery earth lead.

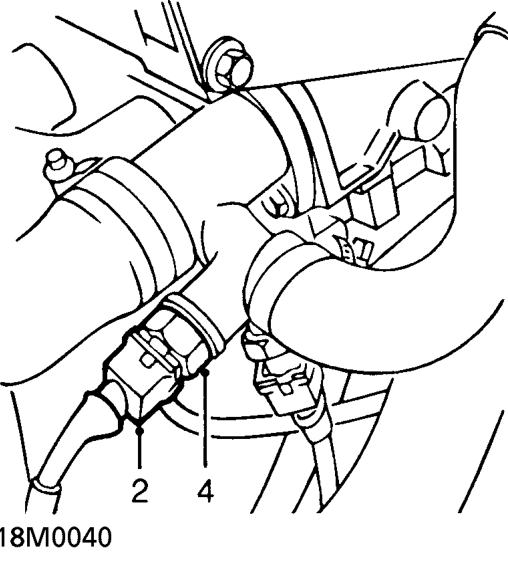

Engine coolant temperature (ect) sensor – Disconnect battery earth lead.
  1. Disconnect multiplug from ECT sensor.
  2. Position container to collect spillage.
  3. Remove ECT sensor.

Refit

  1. Clean threads of ECT sensor.
  2. Apply Loctite 577 to threads of ECT sensor.
  3. Fit ECT sensor and tighten to 15 Nm.
  4. Connect multiplug to ECT sensor.
  5. Connect battery earth lead.
  6. Top-up coolant. See MAINTENANCE.

CRANKSHAFT POSITION (CKP) SENSOR

Service repair no - 18.30.12

Remove

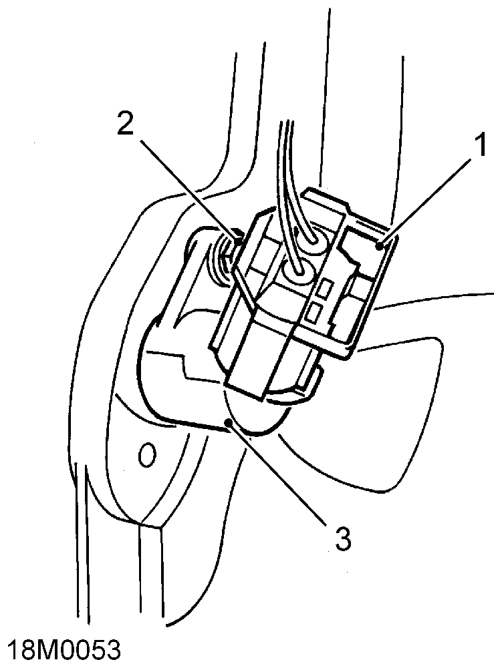

Crankshaft position (ckp) sensor – Service repair no - 18.30.12
  1. Disconnect multiplug from CKP sensor.
  2. Remove bolt securing CKP sensor to flywheel housing.
  3. Remove CKP sensor.

Refit

  1. Clean CKP sensor and mating face on flywheel housing.
  2. Position CKP sensor, fit bolt and tighten to 6 Nm.
  3. Connect multiplug to CKP sensor.
