Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement08 · Engine management system - MEMS
08 · Engine

Air cleaner

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Air cleaner
Engine management system - MEMSAir cleaner

AIR CLEANER

Service repair no - 19.10.01

Remove

  1. Remove battery. See ELECTRICAL, Repairs.
Air cleaner – Remove battery. See ELECTRICAL, Repairs.

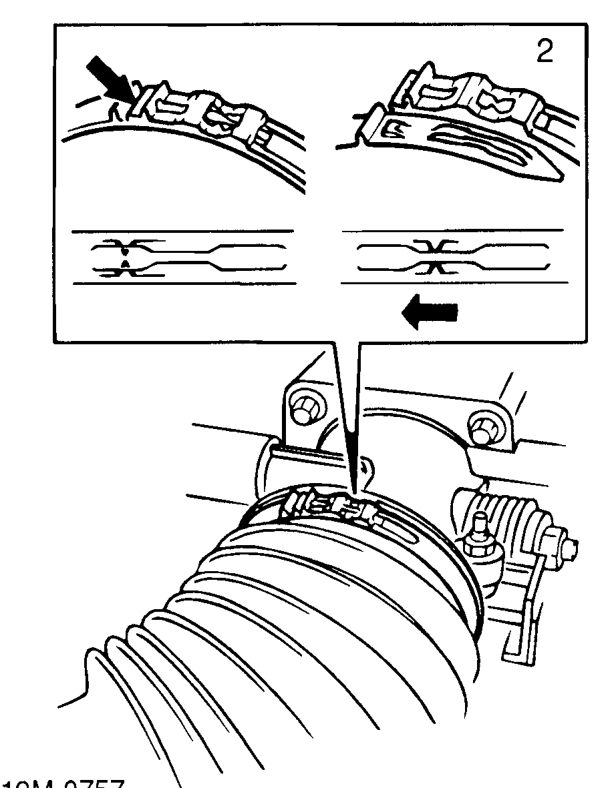

  1. Release clip securing air intake hose to throttle housing.
Air cleaner – Release clip securing air intake hose to throttle housing.

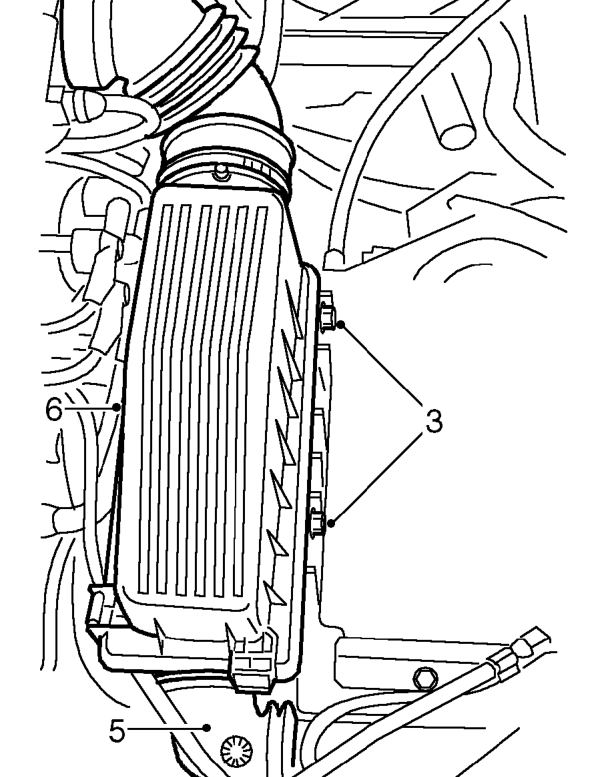

  1. Remove 2 bolts securing air cleaner to battery tray.
  2. Release air intake hose from throttle housing.
  3. Release air cleaner from air intake duct
  4. Remove air cleaner.

Refit

  1. Position air cleaner in vehicle and connect to air intake duct.
  2. Align air cleaner to battery tray.
  3. Fit 2 bolts securing air cleaner to battery tray and tighten to 9 Nm.
  4. Connect intake hose to throttle housing and secure with clip.
  5. Fit battery. See ELECTRICAL, Repairs.
