ECM fuel trap

Refit

1. Clean mating faces of throttle housing and inlet manifold.
2. Lubricate new ’O’ ring with silicone grease and fit to throttle housing.
3. Position throttle housing to inlet manifold and align injector harness multiplug bracket.
4. Fit bolts securing throttle housing to inlet manifold and tighten to 7 Nm.
5. Connect throttle cable to throttle cam.
6. Locate throttle cable adjusting nut in abutment bracket.
7. Connect breather hose to inlet manifold and secure with clip.
8. Connect multiplug to TP sensor.
9. Connect hose from IACV to throttle housing.
10. Connect air intake hose to throttle housing and secure with clip.
11. Connect battery earth lead.

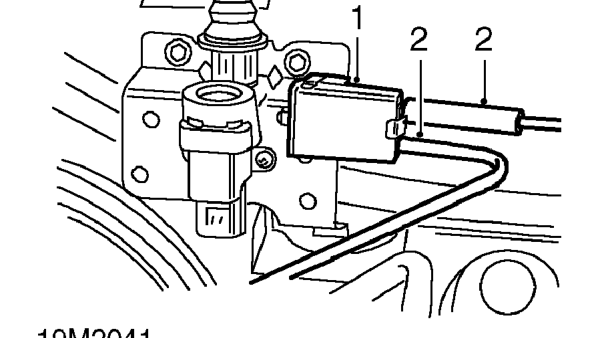

ECM FUEL TRAP

Service repair no - 19.25.10

Remove

1. Release fuel trap from mounting bracket.
2. Disconnect 2 vacuum pipes from fuel trap.

Refit

1. Connect vacuum pipes to fuel trap.
2. Fit fuel trap to mounting bracket.
