Engine management relay module

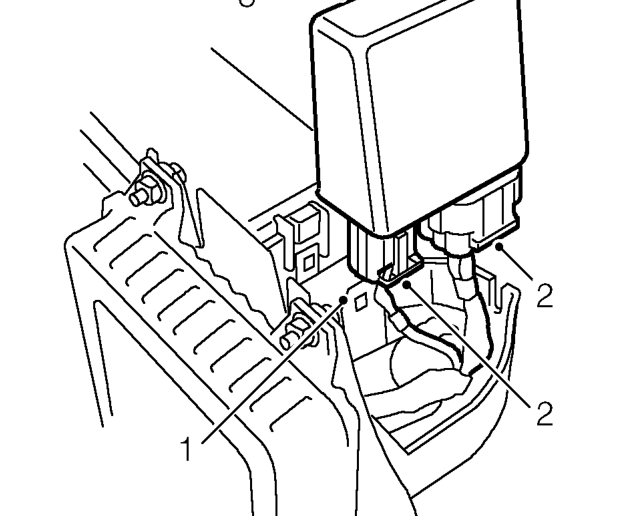

ENGINE MANAGEMENT RELAY MODULE

Service repair no - 18.30.71

The engine management relay module contains the following relays: Main relay Starter relay Fuel pump relay HO2S relay

Remove

1. Release relay module from mounting bracket.
2. Disconnect 2 multiplugs from relay module.
3. Remove relay module.

Refit

1. Position relay module and connect 2 multiplugs. Ensure multiplugs are correctly engaged.
2. Secure relay module to mounting bracket.

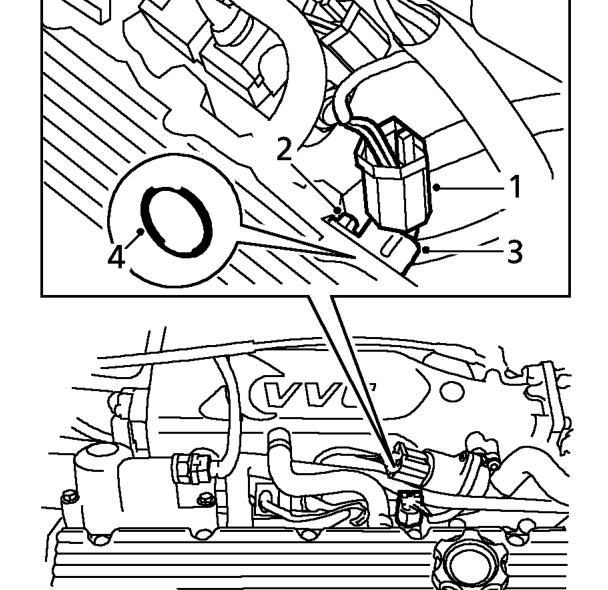

CAMSHAFT POSITION (CMP) SENSOR - ’K16 WITH VVC’

Service repair no - 19.22.07

Remove

1. Disconnect multiplug from CMP sensor.
2. Remove bolt securing CMP sensor to cylinder head.
3. Remove CMP sensor.
4. Remove ’O’ ring from CMP sensor.

Refit

1. Clean sealing faces of sensor and cylinder head.
2. Lubricate and fit ’O’ ring to CMP sensor.
3. Fit sensor to cylinder head and tighten bolt to 6 Nm.
4. Connect multiplug to CMP sensor.
