AIR INTAKE RESONATOR

Service repair no - 19.70.03

Remove

  1. Remove air cleaner. See this section.

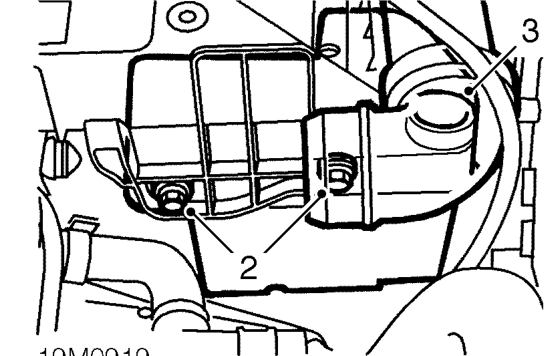

Air intake resonator – Remove air cleaner. See this section.
  1. Remove 2 bolts securing resonator to battery tray.
  2. Release resonator from air intake pipe and remove.

Refit

  1. Fit resonator and connect to air intake pipe.
  2. Fit bolts securing resonator to battery tray and tighten to 9 Nm.
  3. Fit air cleaner. See this section.
