Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement08 · Engine management system - MEMS
08 · Engine

Air cleaner element

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Air cleaner element
Engine management system - MEMSAir cleaner element

AIR CLEANER ELEMENT

Service repair no - 19.10.10

Remove

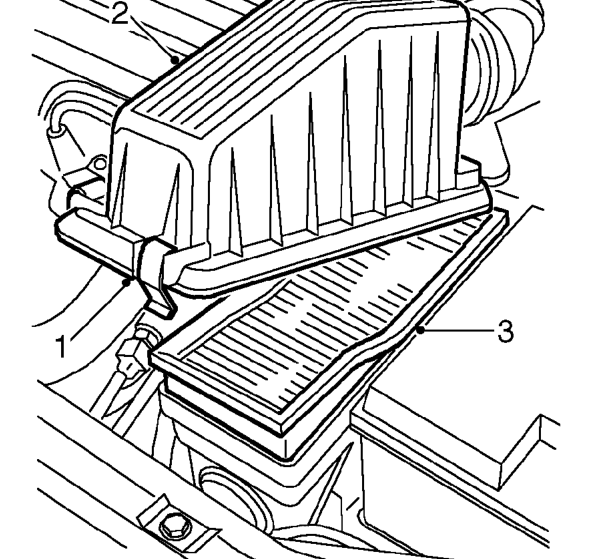

Air cleaner element – Service repair no - 19.10.10
  1. Release 4 clips securing 2 halves of air cleaner.
  2. Release top half of air cleaner and position aside.
  3. Remove and discard air cleaner element.

Refit

  1. Clean inside of air cleaner casing.
  2. Fit new air cleaner element in casing.
  3. Position top half of air cleaner casing and secure with clips.

SPARK PLUGS

Service repair no - 18.20.02

Remove

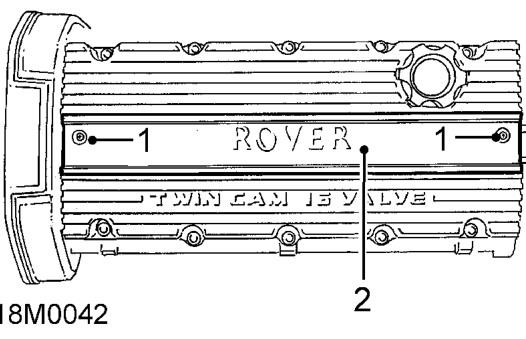

Spark plugs – Service repair no - 18.20.02
  1. Remove 2 screws retaining h.t. lead cover.
  2. Remove h.t. lead cover.

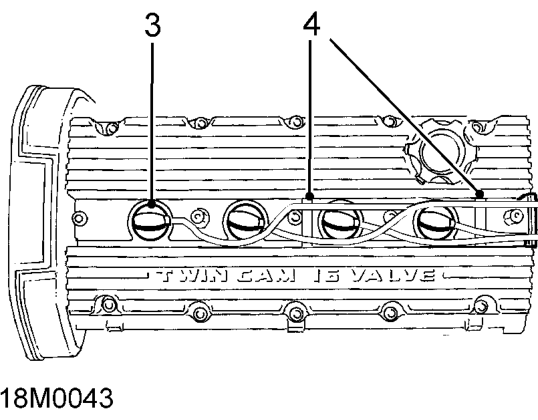

Spark plugs – Remove h.t. lead cover.
  1. Disconnect h.t. leads from spark plugs.
  2. Release h.t. lead mounting rubbers from camshaft cover and place h.t. leads aside.
