FUEL RAIL - ’K16 WITH VVC’

Service repair no - 19.60.04

Remove

  1. Disconnect battery earth lead.
  2. Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  3. Position absorbent cloth around fuel filter outlet union. Loosen union to relieve fuel pressure. Retighten union to 28 Nm.

CAUTION: To prevent damage to fuel system pipes and components, use two spanners when loosening or tightening unions.

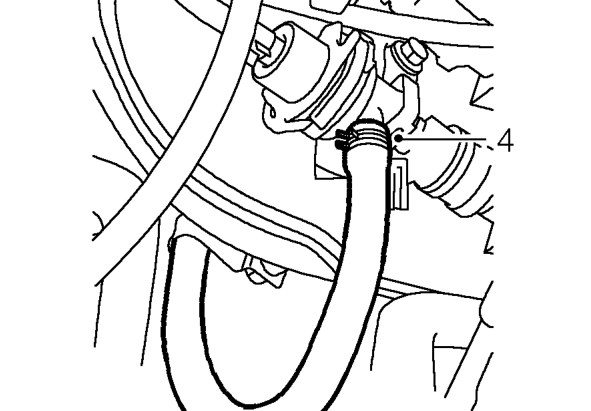

Fuel rail - ’k16 with vvc’ – Position absorbent cloth around fuel filter outlet union. Loosen union to relieve fuel pre
  1. Remove clip and release fuel return pipe from fuel rail.

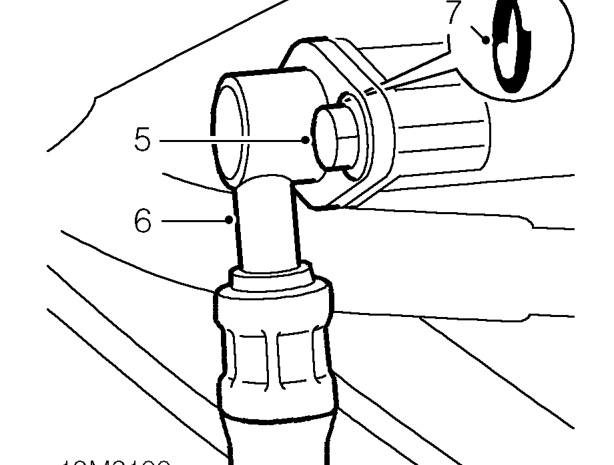

Fuel rail - ’k16 with vvc’ – Remove clip and release fuel return pipe from fuel rail.
  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail.
  3. Remove and discard ’O’ ring.

CAUTION: Plug the connections.

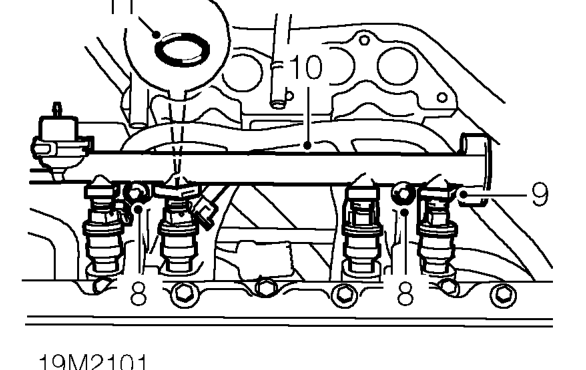

Fuel rail - ’k16 with vvc’ – Remove and discard ’O’ ring.
  1. Remove 2 bolts securing fuel rail to inlet manifold.
  2. Remove spring clips securing injectors to fuel rail.
  3. Release fuel rail from injectors and remove.
  4. Remove and discard ’O’ rings from injectors.
