FUEL RAIL - ’K16’

Service repair no - 19.60.04

Remove

  1. Disconnect battery earth lead.
Fuel rail - ’k16’ – Disconnect battery earth lead.

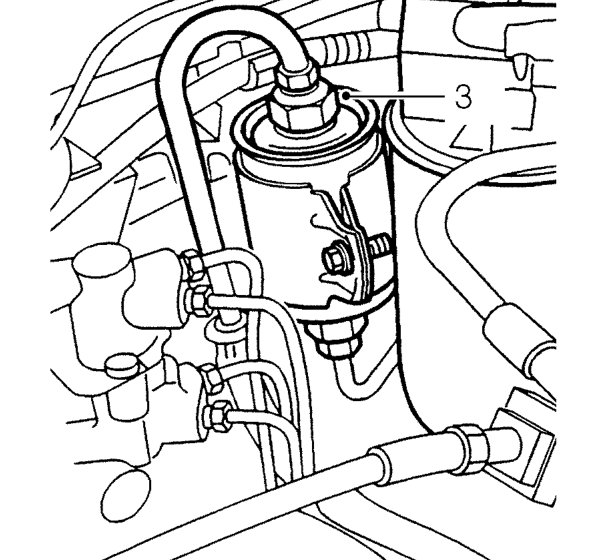

  1. Position absorbent cloth around fuel filter outlet union.
  2. Loosen union to relieve fuel pressure then re-tighten.

CAUTION: To prevent damage to fuel system pipes or components use two spanners when loosening or tightening unions.

Fuel rail - ’k16’ – Loosen union to relieve fuel pressure then re-tighten.

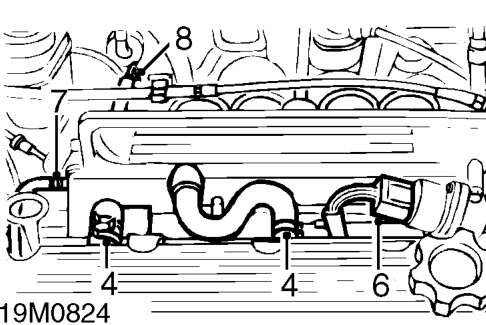

  1. Release clips and disconnect breather hoses from camshaft cover.
  2. Remove 2 breather hoses from inlet manifold.
  3. Disconnect multiplug from IACV.
  4. Release clip and disconnect vacuum pipe from fuel pressure regulator.
  5. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

  1. Remove bolt securing injector harness multiplug bracket to inlet manifold.
  2. Disconnect injector harness multiplug and remove bracket.
