Ignition coil (page 2 of 2)

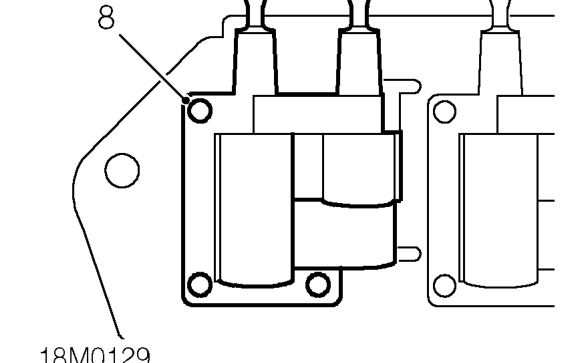

Do not carry out further dismantling if component is removed for access only.

7. Centre punch top of 3 rivets securing coil to mounting bracket.
8. Drill out 3 rivets securing coil to mounting bracket.
9. Remove ignition coil.

Refit

1. Position ignition coil to mounting bracket and secure with nuts and bolts.
2. Position ignition coil mounting bracket and spacer to cylinder block.

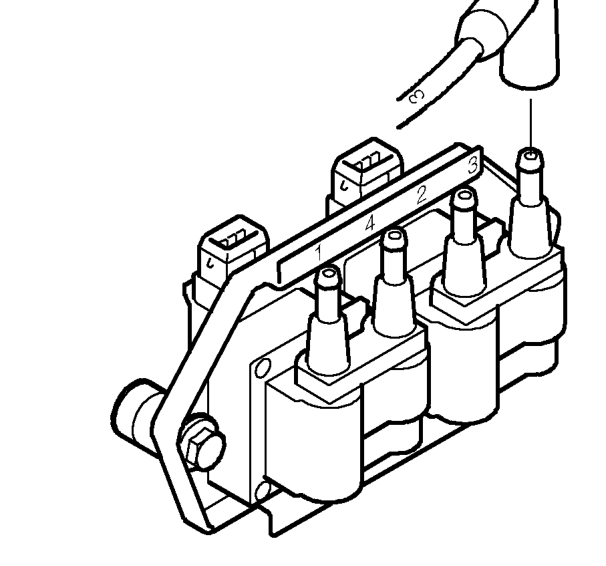

3. Fit bolts securing ignition coil mounting bracket to cylinder block and tighten to 45 Nm.

4. Connect h.t. leads to ignition coils in the order shown.
5. Connect multiplug with 3 pins to ignition coil 1,4.
6. Connect multiplug with 2 pins to ignition coil 2,3.
7. Remove stand(s) and lower vehicle.
8. Connect battery earth lead.
