Engine - K16Crankshaft rear oil seal

CRANKSHAFT REAR OIL SEAL

Service repair no - 12.21.20

Remove

  1. Remove engine flywheel. See this section.
Crankshaft rear oil seal – Remove engine flywheel. See this section.

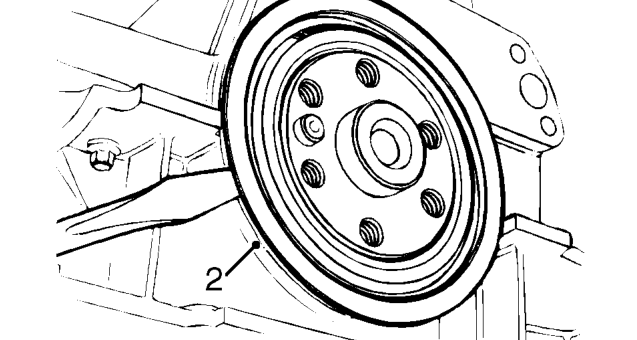

  1. Using a burr free flat ended screwdriver, ease crankshaft rear oil seal from cylinder block and remove.

CAUTION: Do not mark sealing surface on crankshaft.

Refit

  1. Clean oil seal recess in cylinder block and running surface on crankshaft.
  2. Lubricate oil seal sealing face with grease and running face with oil.
Crankshaft rear oil seal – Lubricate oil seal sealing face with grease and running face with oil.

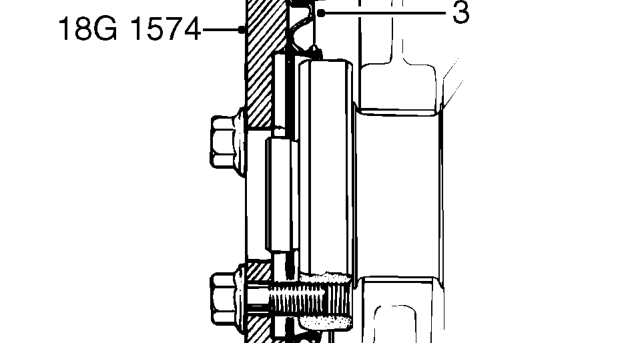

  1. Position oil seal to cylinder block and fit oil seal replacer tool 18G 1574 .
  2. Evenly tighten oil seal replacer bolts to press oil seal into cylinder block.
  3. Remove oil seal replacer tool.
  4. Fit engine flywheel. See this section.
