Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Flywheel - models with automatic gearbox

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Flywheel - models with automatic gearbox
Engine - K16Flywheel - models with automatic gearbox

FLYWHEEL - MODELS WITH AUTOMATIC GEARBOX

Service repair no - 12.53.07

Remove

  1. Remove torsion damper. See this section.
  2. Leave tool 18G 1674 attached to cylinder block.
  3. Remove CKP sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Flywheel - models with automatic gearbox – Remove CKP sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Remove 6 bolts securing flywheel to crankshaft.
  2. Remove flywheel from crankshaft.

Refit

  1. Using a tap, clean adhesive from threads of flywheel bolt holes in crankshaft.
  2. Clean flywheel and mating face of crankshaft.
  3. Fit flywheel to crankshaft.
  4. Fit NEW bolts securing flywheel to crankshaft and working in a diagonal sequence tighten bolts to 85 Nm.
  5. Fit CKP sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  6. Fit torsion damper. See this section.

TORSION DAMPER

Service repair no - 12.53.13

Remove

  1. Remove automatic gearbox assembly. See AUTOMATIC GEARBOX - ’CVT’, Repairs.

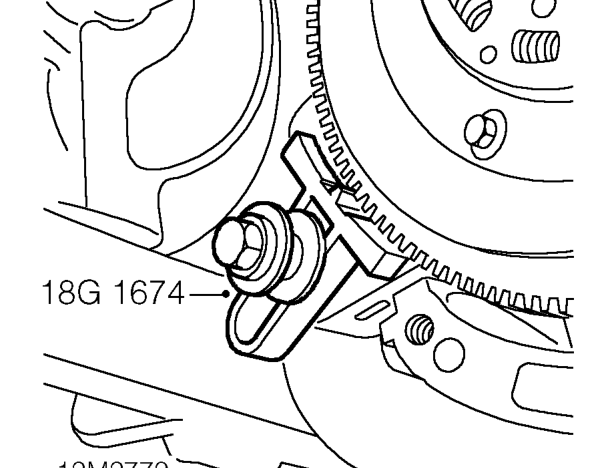

Torsion damper – Remove automatic gearbox assembly. See AUTOMATIC GEARBOX - ’CVT’, Repairs.
  1. Fit flywheel locking tool 18G 1674 to flywheel.
  2. Fit and tighten bolt securing tool in place.
