ENGINE AND GEARBOX - MODELS WITH AIR CONDITIONING

Service repair no - 12.37.01.20

Remove

  1. Disconnect battery earth lead.
  2. If required: Drain engine oil. See MAINTENANCE.
  3. Fit new sealing washer to drain plug, fit drain plug and tighten to 42 Nm.
  4. Drain cooling system. See COOLING SYSTEM, Adjustments.
  5. Drain gearbox oil. See MANUAL GEARBOX - ’R65’, Repairs.
  6. Recover refrigerant from air conditioning system. See AIR CONDITIONING, Adjustments.
  7. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  4. Release ABS fuse holder from battery tray.

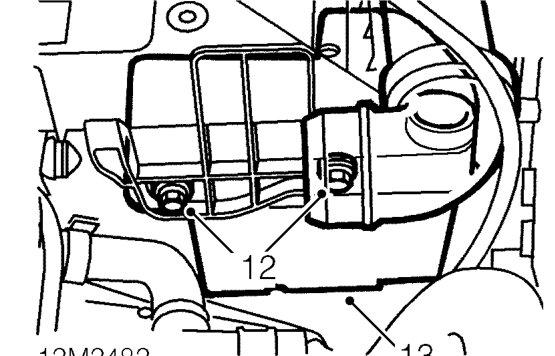

Engine and gearbox - models with air conditioning – Release ABS fuse holder from battery tray.
  1. Remove 2 bolts securing resonator to battery tray.
  2. Remove resonator.

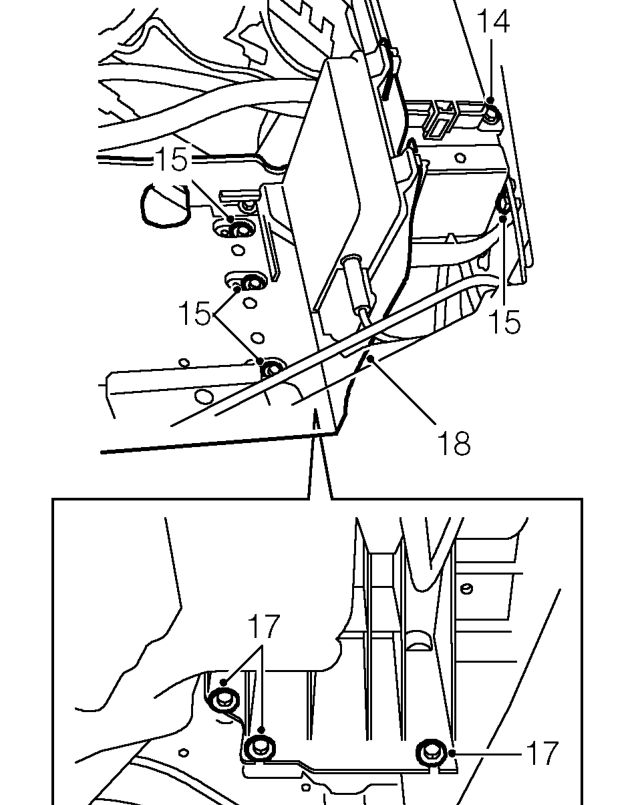

Engine and gearbox - models with air conditioning – Remove resonator.
  1. Remove bolt securing engine compartment fuse box to battery tray.
  2. Remove 4 bolts securing battery tray to body.
  3. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
  4. Loosen 3 bolts securing battery tray to body.
  5. Remove battery tray from vehicle.
