Engine steady bar

54. Connect radiator top hose to coolant outlet elbow and tighten clip.
55. Connect drive shafts to gearbox as detailed in Differential oil seal. See AUTOMATIC GEARBOX - ’CVT’, Repairs.
56. Position battery tray in vehicle.
57. Tighten 3 bolts securing battery tray to body, to 10 Nm.
58. Position engine compartment fuse box to body, fit bolt and tighten to 10 Nm.
59. Fit 4 bolts securing battery tray to body and tighten to 10 Nm.
60. Fit and tighten bolt securing engine compartment fuse box to battery tray.
61. Secure ABS fuse holder to battery tray.
62. Fit engine management relay module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
63. Fit ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
64. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
65. Replace receiver/dryer. See AIR CONDITIONING, Repairs.
66. Adjust selector cable. See AUTOMATIC GEARBOX - ’CVT’, Adjustments.
67. Remove stand(s) and lower vehicle.
68. Recharge air conditioning system. See AIR CONDITIONING, Adjustments.
69. Refill gearbox with fluid. See AUTOMATIC GEARBOX - ’CVT’, Adjustments.
70. Refill cooling system. See COOLING SYSTEM, Adjustments.
71. If required: Refill engine with oil. See MAINTENANCE.
72. Bleed power steering system. See STEERING, Adjustments.
73. Adjust throttle and kickdown cable. See AUTOMATIC GEARBOX - ’CVT’, Adjustments.

ENGINE STEADY BAR

Service repair no - 12.45.08

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

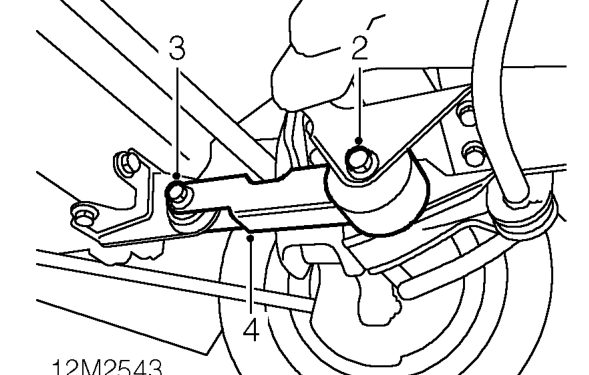

2. Remove through bolt securing engine steady bar to subframe.
3. Remove through bolt securing engine steady bar to bracket on sump.
4. Remove engine steady bar.

Refit

1. Position engine steady bar to subframe and fit through bolt.
2. Fit and tighten through bolt securing steady bar to bracket on sump to 80 Nm.
3. Tighten through bolt securing steady bar to subframe to 80 Nm.
4. Remove stand(s) and lower vehicle.
