Flywheel - models with manual gearbox

Refit

1. Fit engine mounting to vehicle and finger tighten rear nut.
2. Fit mounting bracket to engine mounting, steady bar, and engine.
3. Align mounting bracket to engine, fit bolts and tighten to 160 Nm.
4. Align restraint bar and fit and tighten nuts to 45 Nm.
5. Tighten nut securing engine mounting to body to 45 Nm.
6. Fit nut securing engine mounting to mounting bracket and tighten to 85 Nm.
7. Fit bolt securing mounting bracket to steady bar and tighten to 80 Nm.
8. Remove jack.
9. Remove stand(s) and lower vehicle.

FLYWHEEL - MODELS WITH MANUAL GEARBOX

Service repair no - 12.53.07

Remove

1. Remove clutch assembly. See CLUTCH, Repairs.
2. Leave flywheel locking tool 18G 1571 attached to cylinder block.
3. Remove crankshaft position sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

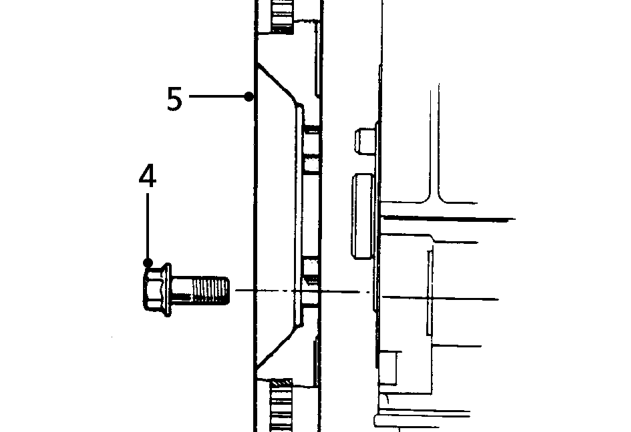

4. Remove and discard 6 bolts securing flywheel to crankshaft.
5. Remove flywheel from crankshaft.

Refit

1. Using a tap, clean adhesive from threads of flywheel bolt holes in crankshaft.
2. Clean flywheel and mating face of crankshaft.
3. Fit flywheel to crankshaft.
4. Fit NEW bolts securing flywheel to crankshaft and working in a diagonal sequence tighten bolts to 85 Nm.
5. Fit crankshaft position sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
6. Fit clutch assembly. See CLUTCH, Repairs.
