RH engine mounting

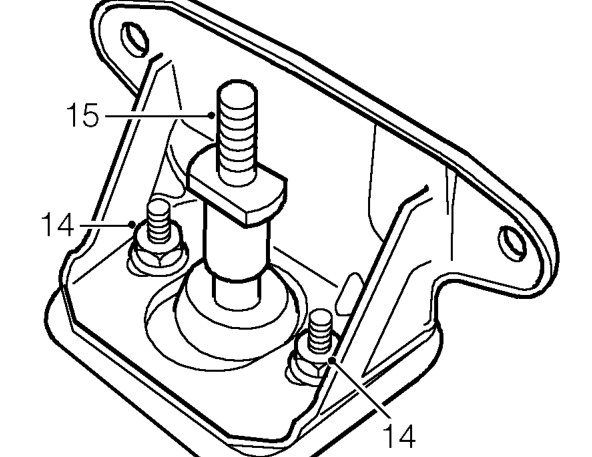

14. Remove 2 nuts securing engine mounting to bracket.
15. Remove engine mounting.

Refit

1. Fit engine mounting to mounting bracket, fit nuts but DO NOT tighten.
2. Position engine mounting assembly in vehicle.
3. Fit bolt securing lower half of engine mounting bracket to body and tighten to 55 Nm.
4. Fit 2 bolts securing upper half of engine mounting bracket to body and tighten to 55 Nm.
5. Raise engine and gearbox assembly and locate gearbox mounting bracket on engine mounting.
6. Fit NEW Nyloc nut securing gearbox mounting bracket to engine mounting and tighten to 160 Nm.
7. Tighten 2 nuts securing engine mounting to mounting bracket to 45 Nm.
8. Position modulator mounting bracket, fit and tighten nuts and bolts.
9. Tighten bolt securing modulator mounting bracket and engine mounting bracket to body to 55 Nm.
10. Fit ABS modulator. See BRAKES, Repairs.
11. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
12. Remove stand(s) and lower vehicle.

RH ENGINE MOUNTING

Service repair no - 12.45.31

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

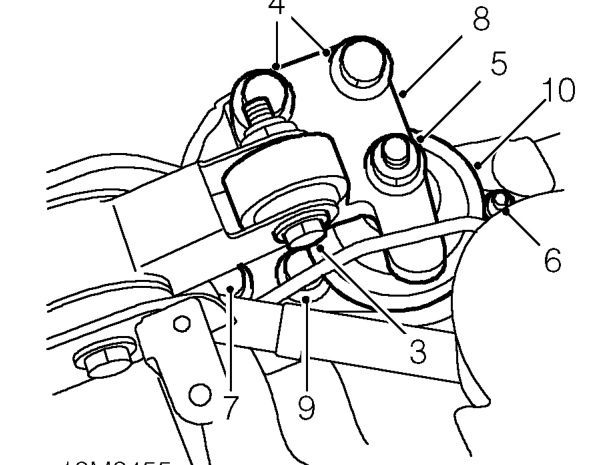

2. Fit wooden block to jack and position jack to support engine.

3. Remove bolt securing RH steady bar to engine mounting bracket.
4. Remove 2 bolts securing mounting bracket to engine.
5. Remove nut securing mounting bracket to engine mounting.
6. Remove nut securing engine mounting and restraint bar to body.
7. Loosen nut securing restraint bar to body and move aside.
8. Remove engine mounting bracket.
9. Remove nut securing engine mounting to body.
10. Remove RH engine mounting.
