Repairs › ABS ECU
BrakesABS ECU

ABS ECU

Service repair no - 70.25.34

Remove

  1. Disconnect battery earth lead.

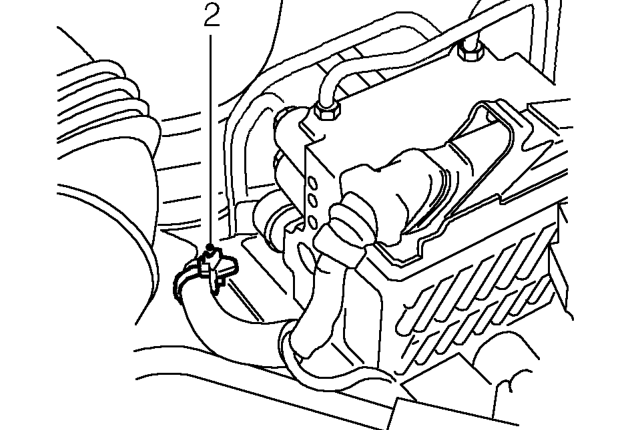

Abs ecu – Disconnect battery earth lead.
  1. Release ABS ECU harness from mounting bracket.

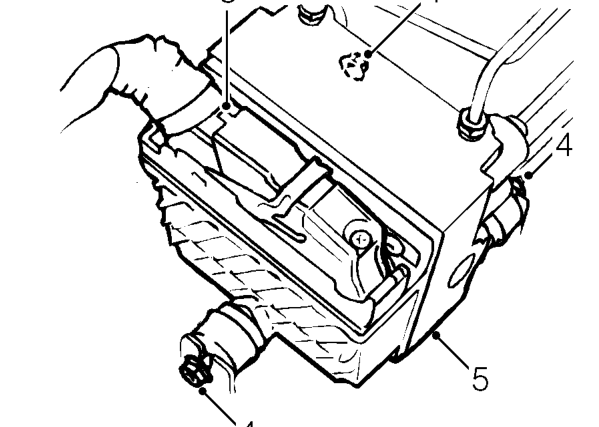

Abs ecu – Release ABS ECU harness from mounting bracket.
  1. Lift clip and disconnect multiplug from ABS ECU.
  2. Loosen 3 nuts securing ABS modulator and ECU assembly to mounting bracket.
  3. Release ABS modulator and ECU assembly from mounting bracket.

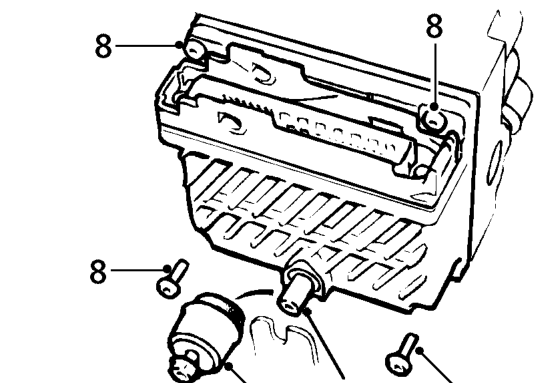

Abs ecu – Release ABS modulator and ECU assembly from mounting bracket.
  1. Remove rubber mounting from spigot on ECU.
  2. Remove mounting spigot from ECU using a TX30 adaptor.
  3. Remove 4 TX25 screws securing ECU to modulator.
  4. Remove ECU from modulator.

CAUTION: Take great care to prevent the entry of foreign matter into the rear of the modulator.

Refit

  1. Fit ECU to modulator.
  2. Fit mounting spigot to ECU. DO NOT tighten.
  3. Fit screws securing ECU to modulator and tighten to 8 Nm.
  4. Tighten spigot to 15 Nm.
  5. Fit mounting rubber to spigot.
  6. Locate ECU and modulator assembly to mounting bracket and tighten nuts to 10 Nm.
  7. Connect multiplug to ECU and secure clip.
  8. Secure ECU harness to mounting bracket.
  9. Connect battery earth lead.
