Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement18 · Brakes
18 · Brakes

Front ABS sensor

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Front ABS sensor
BrakesFront ABS sensor · page 1 of 2

FRONT ABS SENSOR

Service repair no - 70.25.32

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

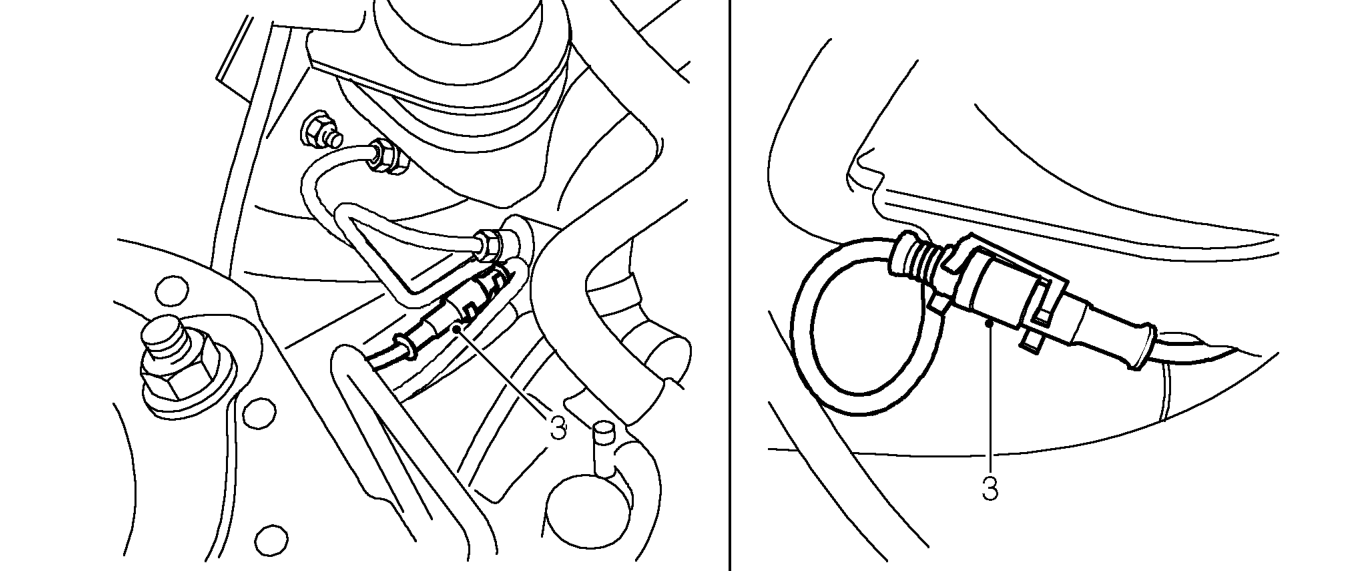

Front abs sensor – Remove road wheel(s).

Located on ABS modulator bracket.

  1. Release sensor multiplug from clip on body and disconnect multiplug.

Located below brake servo.
