Brake proportioning valve - non ABS

Refit

1. Position valve and bracket assembly and align pipes to valve and start unions.
2. Align valve bracket to body and tighten nuts to 10 Nm.
3. Tighten pipe unions to 19 Nm.
4. Remove cloth.
5. Bleed brakes. See Adjustments.

BRAKE PROPORTIONING VALVE - NON ABS

Service repair no - 70.25.15

Remove

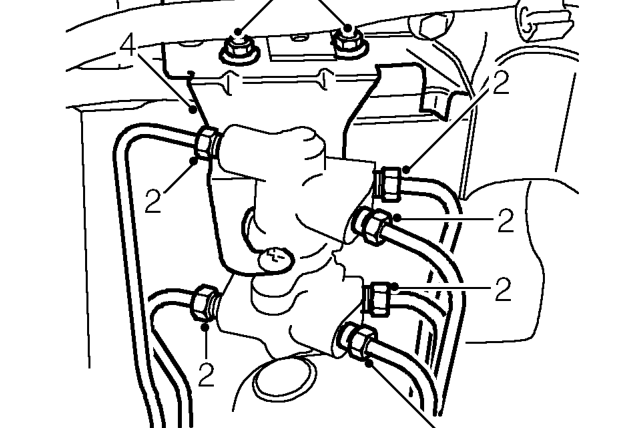

1. Position cloth to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

2. Disconnect 6 brake pipes from valve.

CAUTION: Plug the connections.

3. Remove 2 nuts securing valve bracket to bulkhead.
4. Remove valve and bracket assembly.

CAUTION: Do not remove screws securing valve to bracket.

Refit

1. Position valve and bracket assembly and align pipes to valve and start unions.
2. Align valve bracket to body and tighten nuts to 10 Nm.
3. Tighten pipe unions to 19 Nm.
4. Remove cloth.
5. Bleed brakes. See Adjustments.
