REAR ABS SENSOR

Service repair no - 70.25.33

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Rear abs sensor – Remove road wheel(s).

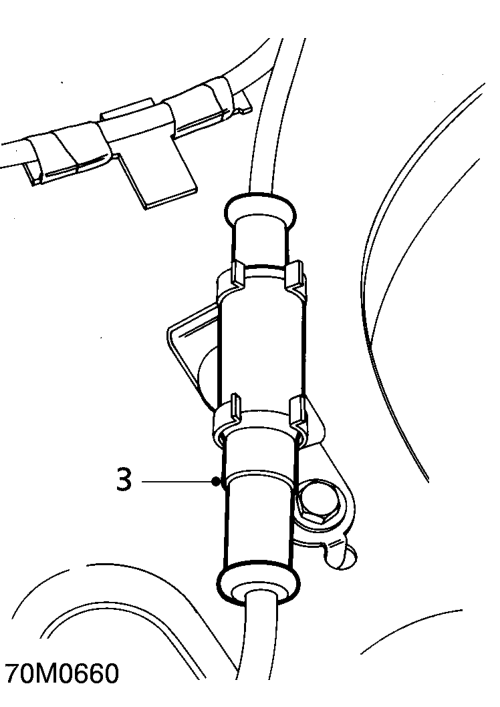

  1. Disconnect ABS sensor harness multiplug.
Rear abs sensor – Disconnect ABS sensor harness multiplug.

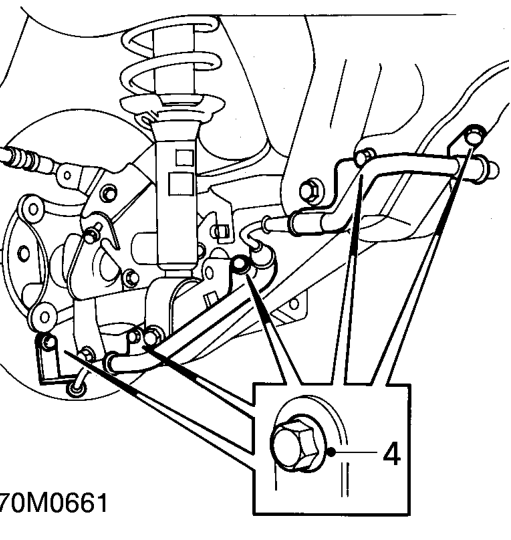

  1. Remove 5 bolts securing harness to body and lower arm.
Rear abs sensor – Remove 5 bolts securing harness to body and lower arm.

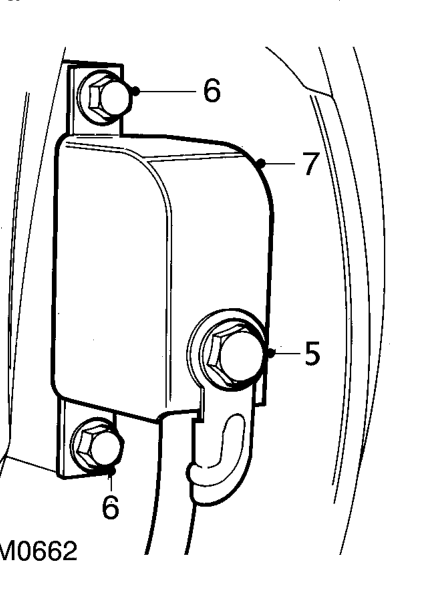

  1. Remove bolt securing cable armouring to ABS sensor shield.
  2. Remove 2 bolts securing ABS sensor shield to hub.
  3. Remove shield.
