Brake proportioning valve - ABS

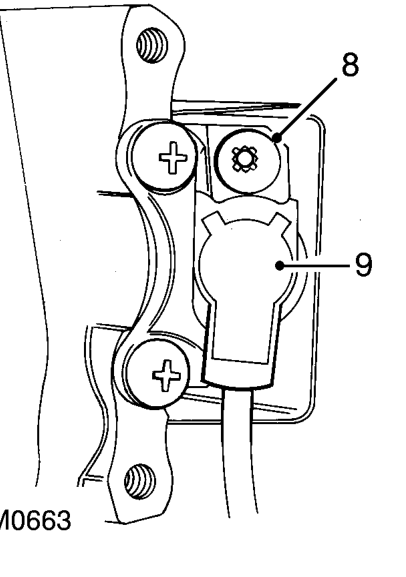

8. Remove Torx screw securing ABS sensor to hub.
9. Remove sensor.

Refit

1. Clean mating faces of ABS sensor and hub.
2. Fit sensor to hub and tighten screw to 6 Nm.
3. Position shield to sensor and fit bolts. Tighten bolts to 10 Nm.
4. Fit bolts securing sensor harness to lower arm and body and tighten to 10 Nm.
5. Connect sensor harness multiplug to main harness.
6. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
7. Remove stand(s) and lower vehicle.

BRAKE PROPORTIONING VALVE - ABS

Service repair no - 70.25.15

Remove

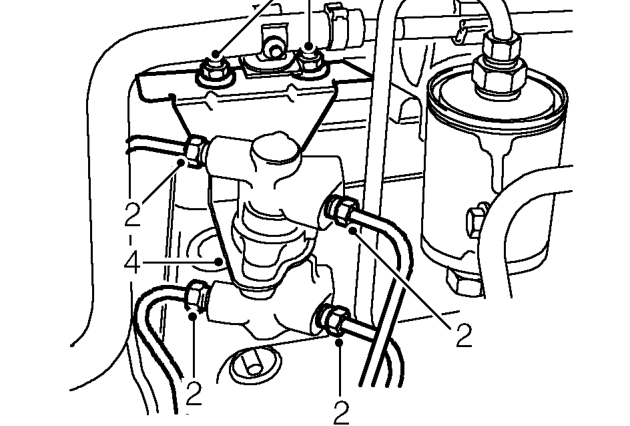

1. Position cloth to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

2. Disconnect 4 brake pipes from valve.

CAUTION: Plug the connections.

3. Remove 2 nuts securing valve bracket to bulkhead.
4. Remove valve and bracket assembly.

CAUTION: Do not remove screws securing valve to bracket.
