ABS HYDRAULIC MODULATOR

Service repair no - 70.25.12

Remove

Abs hydraulic modulator – Service repair no - 70.25.12

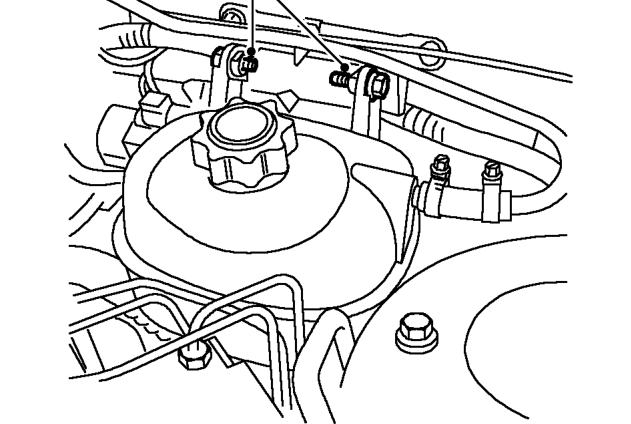

  1. Remove 2 bolts securing coolant expansion tank and move aside.
  2. Disconnect battery earth lead.

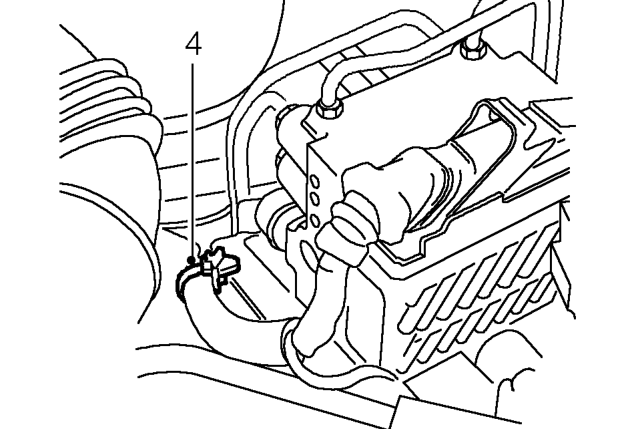

  3. Position cloth under modulator to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

Abs hydraulic modulator – Position cloth under modulator to absorb fluid spillage.
  1. Release ABS ECU harness from mounting bracket.

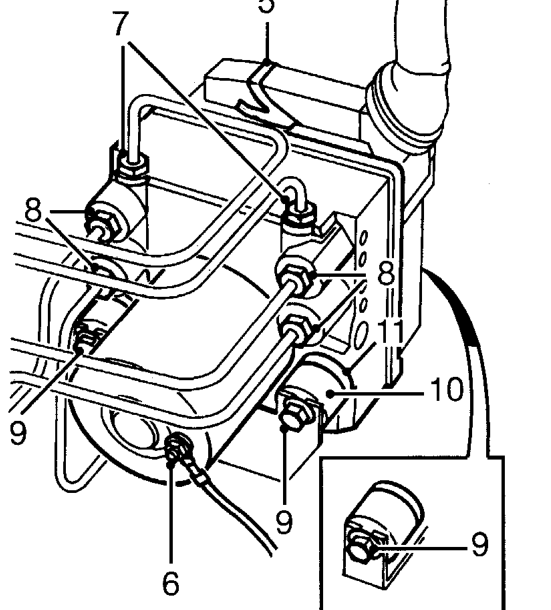

Abs hydraulic modulator – Release ABS ECU harness from mounting bracket.
  1. Lift clip and disconnect multiplug from ABS ECU.
  2. Remove nut securing earth lead to modulator and disconnect lead.
  3. Disconnect 2 inlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.

  1. Disconnect 4 outlet brake pipe unions from rear of modulator.

CAUTION: Plug the connections.

  1. Loosen 3 nuts securing modulator and ECU assembly to mounting bracket.
  2. Release modulator and ECU assembly from mounting bracket and remove. Do not carry out further dismantling if component is removed for access only.
  3. Remove 3 mounting rubbers from modulator and ECU assembly and fit to new.
