Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Engine LH mounting - automatic gearbox models with ABS

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Engine LH mounting - automatic gearbox models with ABS
Engine - K16Engine LH mounting - automatic gearbox models with ABS

ENGINE LH MOUNTING - AUTOMATIC GEARBOX MODELS WITH ABS

Service repair no - 12.45.30.35

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Remove ABS hydraulic modulator. See BRAKES, Repairs.

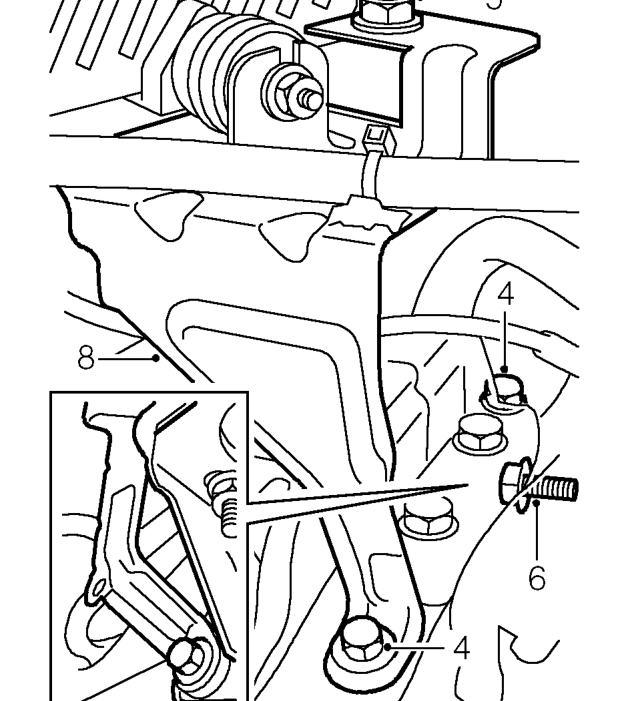

Engine lh mounting - automatic gearbox models with abs – Remove ABS hydraulic modulator. See BRAKES, Repairs.
  1. Remove 2 bolts securing modulator mounting bracket to body.
  2. Remove nut securing modulator mounting bracket to body.
  3. Remove bolt securing modulator mounting bracket and engine LH mounting bracket to body.
  4. Release brake pipes from clip on modulator mounting bracket.
  5. Remove modulator mounting bracket.
  6. Fit wooden block to jack and position jack to support engine.

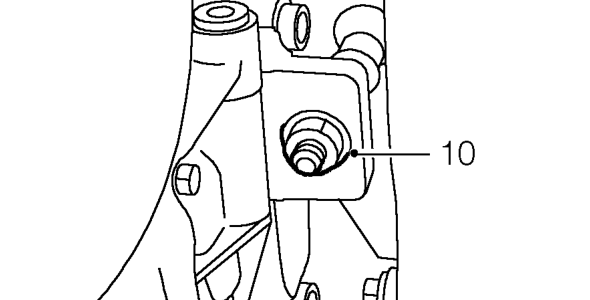

Engine lh mounting - automatic gearbox models with abs – Fit wooden block to jack and position jack to support engine.
  1. Remove and discard nut securing gearbox mounting bracket to engine.
  2. Lower engine and gearbox from engine LH mounting.

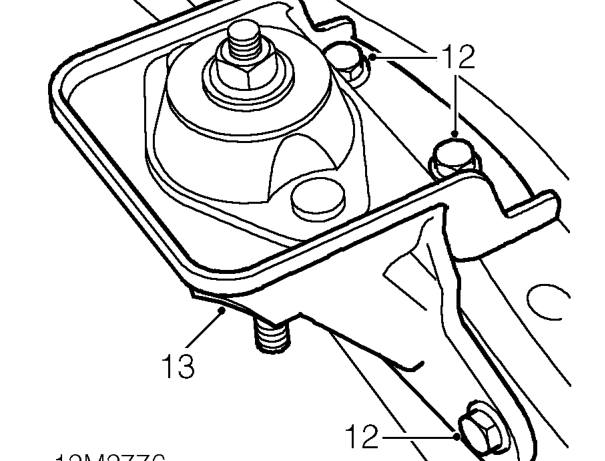

Engine lh mounting - automatic gearbox models with abs – Lower engine and gearbox from engine LH mounting.
  1. Remove 3 bolts securing engine LH mounting bracket to body.
  2. Remove engine mounting and bracket.
