LH engine mounting (page 2 of 2)

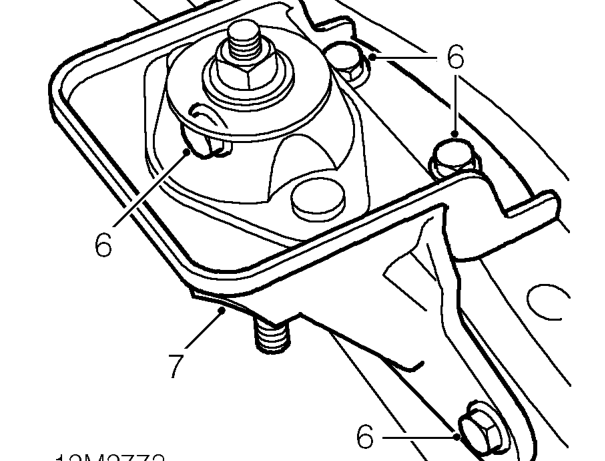

6. Remove 4 bolts securing engine LH mounting bracket to body.
7. Remove engine mounting and bracket.

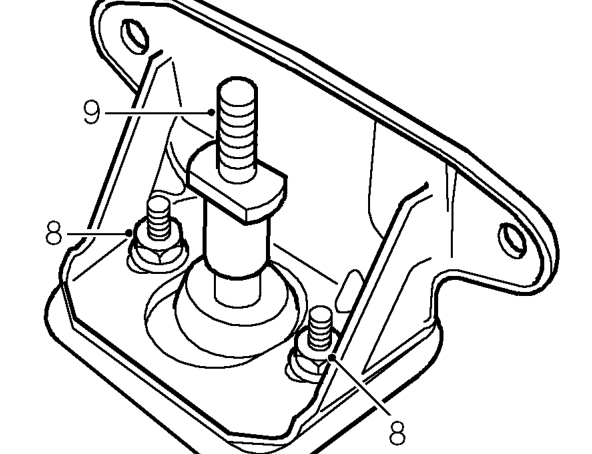

8. Remove 2 nuts securing bracket to engine mounting.
9. Remove engine mounting.

Refit

1. Fit engine mounting to mounting bracket, fit nuts but DO NOT tighten.
2. Position engine mounting assembly in vehicle.
3. Fit bolts securing lower half of engine mounting bracket to body and tighten to 55 Nm.
4. Fit bolts securing upper half of engine mounting bracket to body and tighten to 55 Nm.
5. Raise engine and gearbox assembly and locate gearbox mounting bracket on engine mounting.
6. Fit NEW Nyloc nut securing gearbox mounting bracket engine mounting and tighten to 160 Nm.
7. Tighten 2 nuts securing engine mounting to mounting bracket to 45 Nm.
8. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
9. Remove stand(s) and lower vehicle.
