Oil filter

OIL FILTER

Service repair no - 12.60.04

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Clean area around filter head and place a container beneath engine

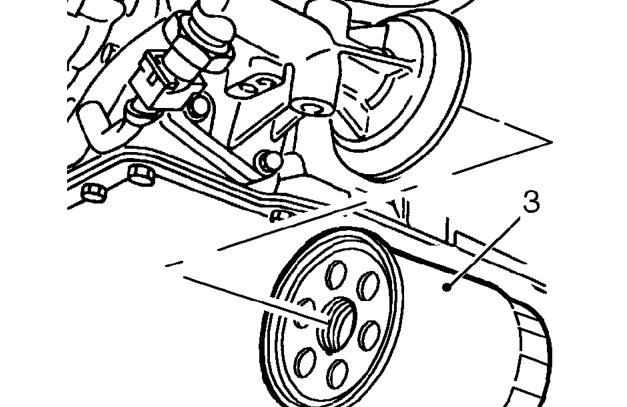

3. Using a strap wrench, unscrew and discard filter.

Refit

1. Clean mating face of filter head.
2. Lubricate sealing ring of new filter with clean engine oil.
3. Fit new filter and tighten by hand until it seats then tighten a further half turn.
4. Remove stand(s) and lower vehicle.
5. Top up engine with oil to specification 10W/40 until level is correct.
6. Start and run engine and check for leaks.
7. Stop engine, wait a few minutes, then check oil level. Top up if necessary.

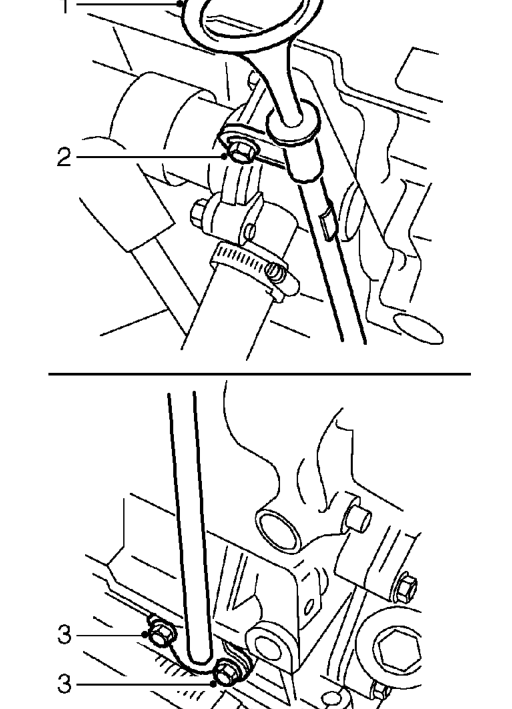

DIPSTICK TUBE

Service repair no - 12.60.09

Remove

1. Remove dipstick.
2. Remove bolt securing thermostat housing and dipstick tube to cylinder block.
3. Remove 2 bolts securing dipstick tube to cylinder block.
4. Remove dipstick tube and collect gasket.

Refit

1. Fit new gasket and dipstick tube to cylinder block.
2. Fit bolts securing dipstick tube to cylinder block and tighten to 10 Nm.
3. Fit bolt securing dipstick tube and thermostat housing to cylinder block and tighten to 10 Nm.
4. Fit dipstick.
