Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Valve stem oil seal

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Valve stem oil seal
Engine - K16Valve stem oil seal · page 1 of 3

Refit

  1. Clean mating surfaces of camshaft cover and carrier.
  2. Clean inside of camshaft cover. If necessary, wash oil separator elements in solvent and blow dry.

CAUTION: If camshaft cover gasket is to be renewed, fit new gasket with ’EXHAUST MAN SIDE’ mark towards exhaust manifold.

Clean inside of camshaft cover. If necessary, wash oil separator elements in solvent and b

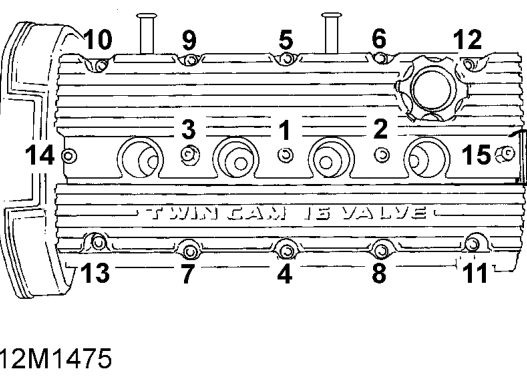

  1. Fit camshaft cover to camshaft carrier. Fit bolts and working in sequence illustrated, tighten progressively to 10 Nm.
  2. Connect h.t. leads to spark plugs and secure mounting rubbers to camshaft cover.
  3. Fit spark plug cover, fit screws and tighten to 8 Nm.
  4. Connect breather hoses and secure with clips.
  5. Connect battery earth lead.

VALVE STEM OIL SEAL

Service repair no - 12.30.26

Remove

  1. Disconnect battery earth lead.
  2. Remove camshaft cover. See this section.
  3. Remove inlet and exhaust camshafts, See ’K’ Series Engine Overhaul Manual - Overhaul.
Valve stem oil seal – Remove inlet and exhaust camshafts, See ’K’ Series Engine Overhaul Manual - Overhaul.

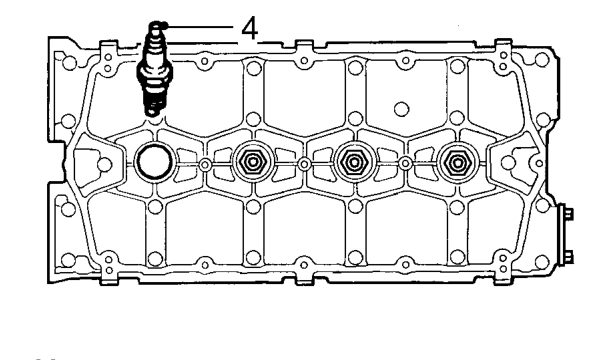

  1. Using a 16 mm spark plug socket, remove 4 spark plugs.
