Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Valve stem oil seal (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Valve stem oil seal · page 2 of 3
Diagram

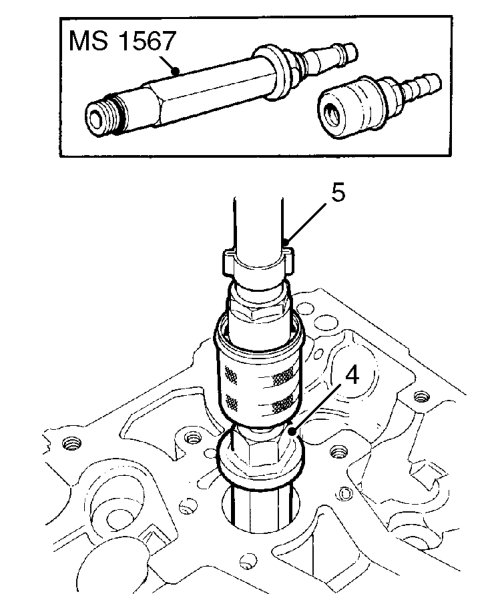

  1. Fit and tighten air line adaptor tool MS 1567 into spark plug hole.
  2. Connect an airline to adaptor and apply air pressure.
  3. Remove hydraulic tappet from exhaust valve.

CAUTION: Store tappet inverted to prevent oil loss.

Remove hydraulic tappet from exhaust valve.

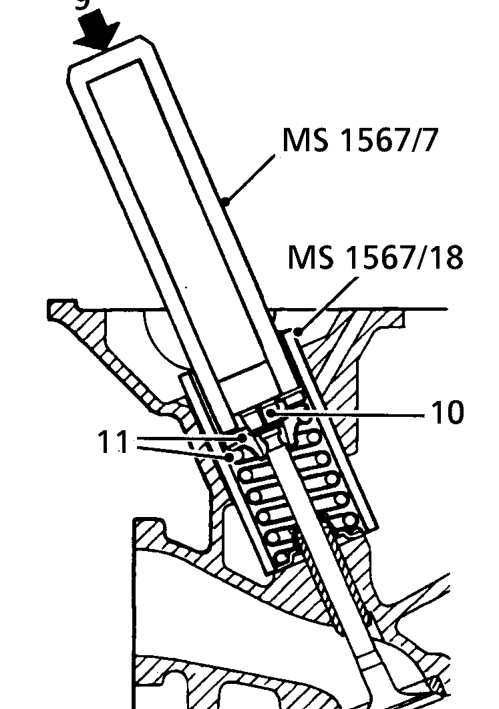

  1. Fit tool 18G 1657/18 and tool MS 1567/7 to valve spring cap.
  2. Strike head of tool MS 1567/7 firmly with hammer to release valve spring
  3. Remove collets from magnetic end of tool.
  4. Remove valve spring cap and spring.
