Engine - K16Inlet camshaft front oil seal

INLET CAMSHAFT FRONT OIL SEAL

Service repair no - 12.13.09

The procedure for renewing the inlet camshaft front oil seal is identical to the procedure for renewing the exhaust camshaft front oil seal. See this section.

INLET CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.10

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove rotor arm. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

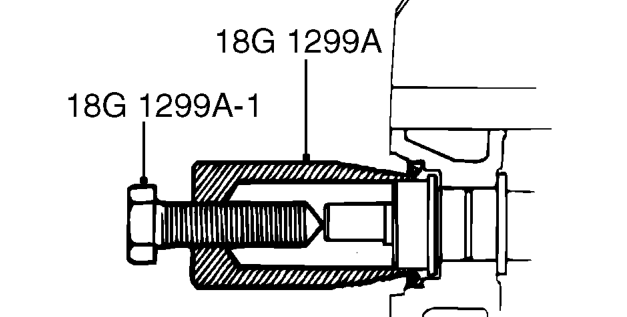

Inlet camshaft rear oil seal – Remove rotor arm. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Screw tool 18G 1299A into camshaft rear oil seal.
  2. Tighten centre bolt of tool 18G 1299A-1, to remove seal.
  3. Remove camshaft oil seal.
