CYLINDER HEAD GASKET - MODELS WITHOUT AIR CONDITIONING

Service repair no - 12.29.02

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove camshaft timing belt. See this section.
  2. Drain cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.

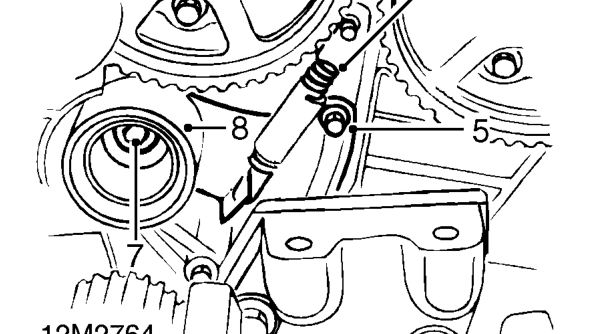

Cylinder head gasket - models without air conditioning – Drain cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.
  1. Remove bolt securing camshaft timing belt tensioner backplate to cylinder head.
  2. Disconnect camshaft timing belt tensioner spring from stud on cylinder head.
  3. Remove Allen bolt securing camshaft timing belt tensioner pulley to cylinder head.
  4. Remove camshaft timing belt tensioner.

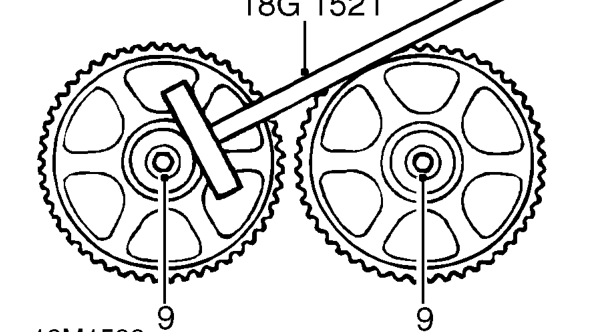

Cylinder head gasket - models without air conditioning – Remove camshaft timing belt tensioner.
  1. Restrain camshaft gears using 18G 1521 and remove bolts and washers securing camshaft gears to camshafts.
  2. Remove camshaft gear locking tool 18G 1570.
  3. Mark camshaft gears for identification when refitting.
  4. Remove 2 camshaft gears.

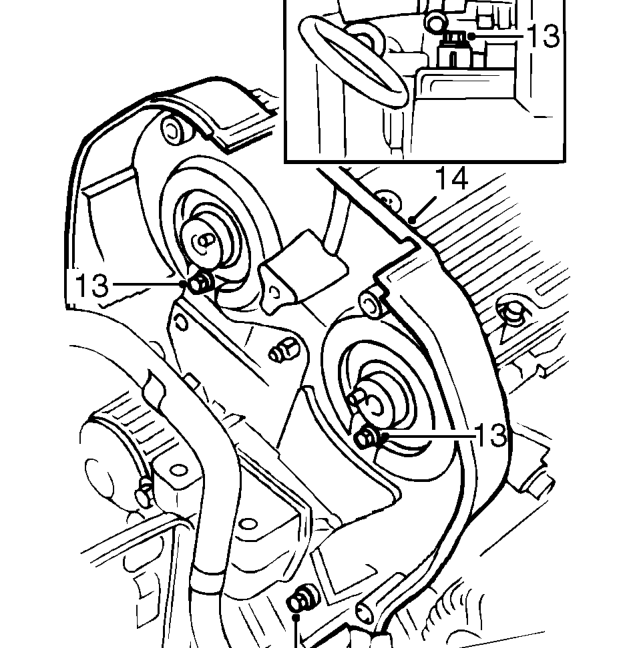

Cylinder head gasket - models without air conditioning – Remove 2 camshaft gears.
  1. Remove 4 bolts securing camshaft timing belt rear cover to cylinder head and block.
  2. Remove camshaft timing belt rear cover.
