Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Cylinder head gasket - models without air conditioning (page 4 of 7)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Cylinder head gasket - models without air conditioning · page 4 of 7
Diagram

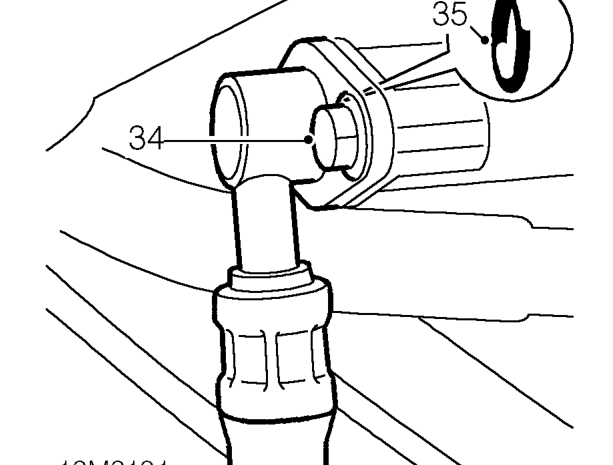

  1. Remove 2 bolts securing fuel feed hose to fuel rail.
  2. Release feed hose from fuel rail. Remove and discard ’O’ ring.
Release feed hose from fuel rail. Remove and discard ’O’ ring.

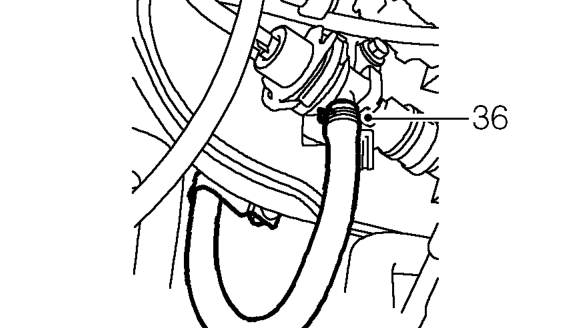

  1. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

Release clip and disconnect fuel return hose from fuel rail.

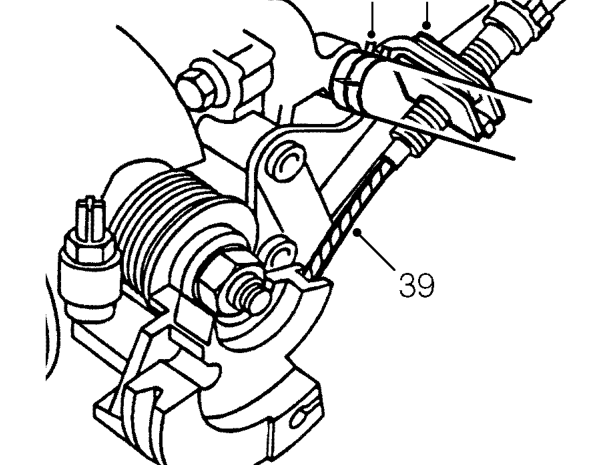

  1. Release clip and disconnect purge hose from throttle housing.
  2. Release throttle cable adjusting nut from abutment bracket.
  3. Disconnect throttle cable from throttle cam.
