Cylinder head gasket - models without air conditioning (page 3 of 7)

Make

Rover

Model

Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement

Section

Repairs

Engine - K16Cylinder head gasket - models without air conditioning · page 3 of 7

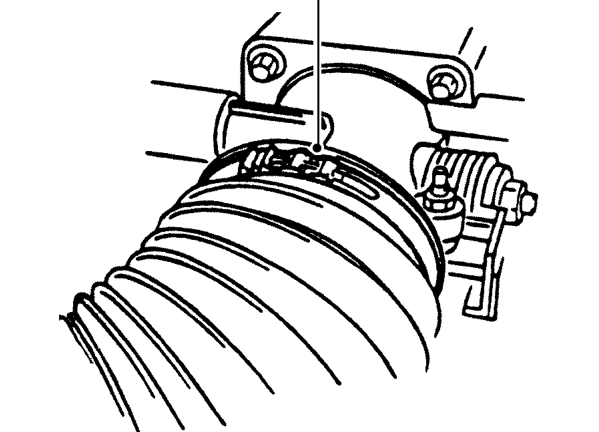

30. Remove clip and disconnect air intake pipe from throttle body.

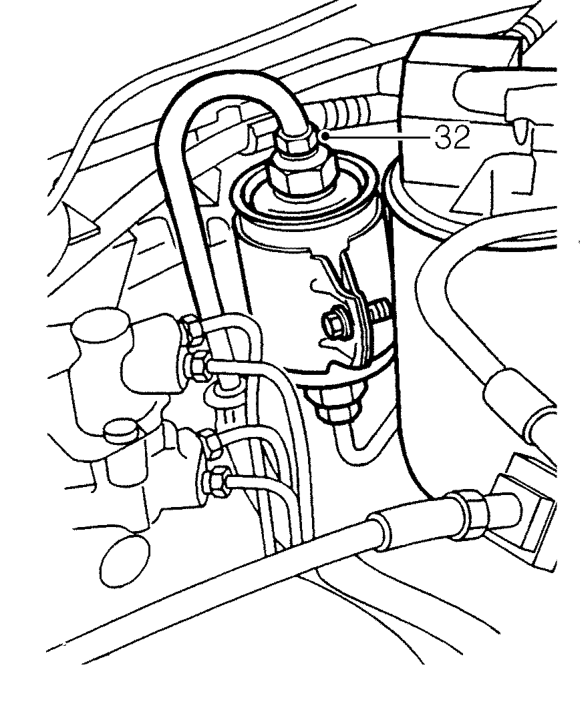

31. Position absorbent cloth around fuel filter outlet union.
32. Loosen fuel filter outlet union to relieve fuel pressure.

CAUTION: To prevent damage to fuel system pipes or components use two spanners when loosening or tightening unions.

33. Tighten fuel filter union to 28 Nm.

05 Engine
