Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

LH engine mounting

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › LH engine mounting
Engine - K16LH engine mounting · page 1 of 2

LH ENGINE MOUNTING

Service repair no - 12.45.30

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove air cleaner See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Fit wooden block to jack and position jack to support gearbox.

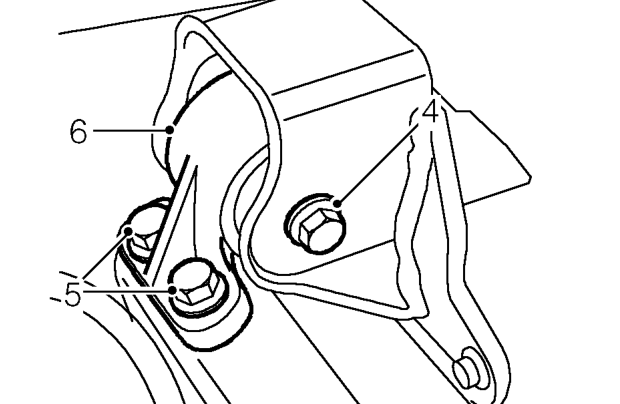

Lh engine mounting – Fit wooden block to jack and position jack to support gearbox.
  1. Remove bolt securing engine mounting to body mounting bracket.
  2. Remove 2 bolts securing engine mounting to gearbox mounting bracket.
  3. Remove engine mounting.

Refit

  1. Position engine mounting to body and gearbox mounting brackets.
  2. Fit bolts securing engine mounting to gearbox bracket and tighten to 100 Nm.
  3. Fit bolt securing engine mounting to body mounting bracket and tighten to 85 Nm.
  4. Remove jack.
  5. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  6. Remove stand(s) and lower vehicle.

ENGINE LH MOUNTING - AUTOMATIC GEARBOX MODELS WITHOUT ABS

Service repair no - 12.45.30

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Fit wooden block to jack and position jack to support engine.

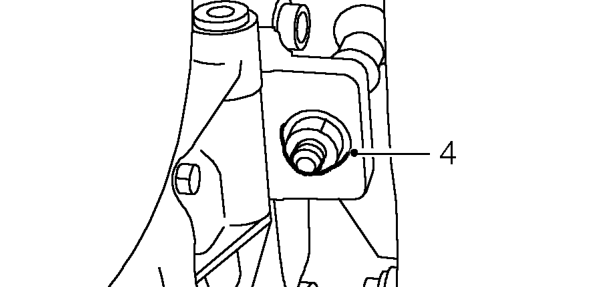

Engine lh mounting - automatic gearbox models without abs – Fit wooden block to jack and position jack to support engine.
  1. Remove and discard nut securing gearbox mounting bracket to engine.
  2. Lower engine and gearbox from engine mounting.
