Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Crankshaft front pulley

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Crankshaft front pulley
Engine - K16Crankshaft front pulley · page 1 of 2

Refit

  1. Clean sealing area of cylinder head and camshaft carrier, ensuring all traces of rubber are removed. DO NOT use a scraper as this may damage sealing surfaces.
  2. Lubricate sealing surfaces of new seal with clean engine oil.
Lubricate sealing surfaces of new seal with clean engine oil.

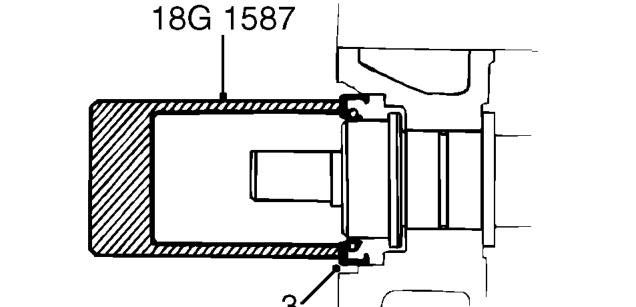

  1. Using tool 18G 1587 fit camshaft oil seal.
  2. Fit rotor arm. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Fit air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  4. Connect battery earth lead.

CRANKSHAFT FRONT PULLEY

Service repair no - 12.21.01

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  2. Remove starter motor. See ELECTRICAL, Repairs.
Crankshaft front pulley – Remove starter motor. See ELECTRICAL, Repairs.

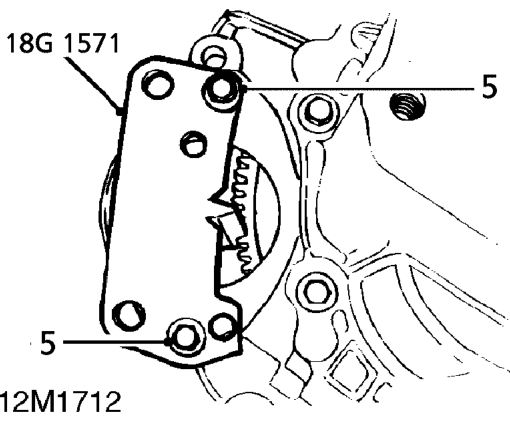

  1. Fit tool 18G 1571 to flywheel housing and secure with 2 bolts.
